WIC-2T
WIC-2T

WIC-2T

Product ID : WAN Interface Cards (WIC)
Product Description

Manufacturer Part#: WIC-2T

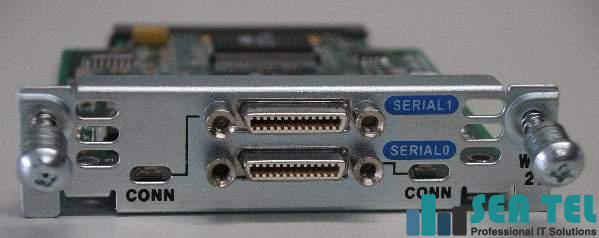

WIC-2T 2 x Serial - WAN Interface Card (WIC)

WIC-2T Cisco WAN Interface card 2-Port Serial Wan Interface Card

In stock & Ready to ship

WIC-2T
The 2-Port Serial WAN Interface Card provides serial connections to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.

Cisco WIC-2T General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: WAN Interface Card (WIC)
Product Type: WAN Interface Card (WIC)

Cisco WIC-2T Interfaces/Ports:
Interfaces/Ports: 2 x Serial WAN
Interfaces/Ports Details: 2 x Smart Serial Asynchronous/Synchronous Serial WAN

Cisco WIC-2T Media & Performance:
Connectivity Media: Serial Cable
Data Transfer Rate: 2.048Mbps Synchronous Serial
Data Transfer Rate: 115.2Kbps Asynchronous Serial

Cisco WIC-2T Management & Protocols:
Protocols: Frame Relay
Protocols: PPP

Cisco WIC-2T Physical Characteristics:
Shipping Dimensions: 2 Height x 9.5 Width x 12.5 Depth
Shipping Weight: 1.64 lb

Cisco WIC-2T Miscellaneous:
Additional Information: Modular Router Solutions:
•LAN-to-LAN Routing
•VPN & Firewall Solutions

Hardware Failures:
•The WIC-2T and WIC-2A/S can be damaged by excessive electrostatic discharge. You can minimize this electrostatic discharge in several ways.
- Use shielded cable end-to-end.
- Use a data surge protector that protects against surges over +/- 18v.
- Use an optical isolator (best protection).

Comments:
•For use in a Cisco 2600 series and 3600 series with the NM-1FE2W, NM-2FE2W, NM-1FE1R2W and NM-2W or a Cisco 1720.

Compatibility: Supported Platforms & Minimum IOS Versions:
•3745 - 12.2(8)T
•3725 - 12.2(8)T
•3660 series - 12.0(7)XK
•3640 - 12.1(1)T
•3620 - 12.1(1)T
•2691 - 12.2(8)T1
•2650 - 12.1(3)T
•2600XM Series - 12.2(8)T1
•2600 series - 11.3(2)XA
•1720 - 12.0.1(XA3)
•1600 series - Not Available


Contact Sea Tel International Co., Limited for more information.
