Manufacturer Part#: WIC-1SHDSL

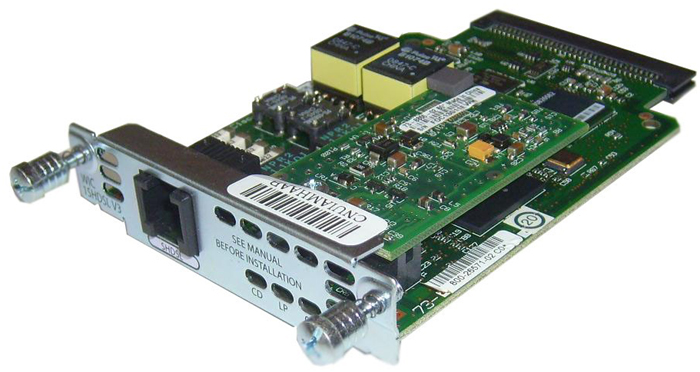

WIC-1SHDSL 1 x G.SHDSL - WAN Interface Card (WIC)
WIC-1SHDSL Cisco WAN Interface card
WIC-1SHDSL
The Cisco 2600/3600/3700 Series with single-pair high-bit-rate digital subscriber line (G.shdsl) WAN interface card is the industry's first multiservice router to deliver business-class broadband service with scalable performance, flexibility, and security for branch and regional offices. Combined with the integrated G.shdsl WAN Interface Card (WIC-1SHDSL), the Cisco 2600/3600/3700 is the perfect solution for a variety of businesses requiring high-speed business-class DSL connectivity on a secure, high-performance modular platform.
Cisco WIC-1SHDSL General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: WAN Interface Card (WIC)
Product Type: WAN Interface Card (WIC)
Cisco WIC-1SHDSL Interfaces/Ports
Interfaces/Ports: 1 x G.SHDSL WAN
Interfaces/Ports Details: 1 x RJ-11 G.SHDSL WAN
Cisco WIC-1SHDSL Media & Performance
Connectivity Media: Cable
Cisco WIC-1SHDSL Controls/Indicators
Status Indicators:
CD (Carrier Detect)
LP (Loopback)
OK (DSLSAR download complete)
CD (Carrier Detect)
LP (Loopback)
OK (DSLSAR download complete)
Cisco WIC-1SHDSL Physical Characteristics
Dimensions: 0.75 Height x 3.08 Width x 4.38 Depth
Shipping Dimensions: 2 Height x 9.5 Width x 12.5 Depth
Weight: 0.15 lb
Shipping Weight: 5 lb
Cisco WIC-1SHDSL Miscellaneous
Additional Information:
RJ-11 line cord (included)
Modular Router Solutions:
DSL Access
ATM Edge Connectivity
DCN (Data Communications Network)
TDM/Drop&Insert
VPN & Firewall Solutions
The Cisco 1700 combined with the WIC-1SHDSL provides:
Symmetrical WAN speeds (up to 2.3 Mbps) over a single copper pair
Multiple G.shdsl WICs per Cisco 1700 chassis
Support for voice over IP (VoIP) over DSL with IP quality of service (QoS)
Support for IP QoS map to ATM class of service (CoS)
Back-to-back operation or operation via DSL access multiplexer (DSLAM)
Support for up to 23 virtual circuits per WIC
Longer Reach Than Other DSL Technologies:
Provides 2.3 Mbps at up to 11,000 feet on 26 AWG (subject to line conditions)
Operates at distances up to 22,000 feet
Repeatable for even greater distances
Spectral friendly technology gives less interference with other transmission technologies
Voice Support:
Support for VoIP over DSL with QoS using H.323 signaling
Cisco IOS Software and Platform Support:
First supported in Cisco IOS Software Release 12.2(4)XL
Functions in built-in VIC/WIC slots
Country Support:
Complies with ITU G.991.2 standard
Worldwide-accepted technology
RJ-11 line cord (included)
Modular Router Solutions:
DSL Access
ATM Edge Connectivity
DCN (Data Communications Network)
TDM/Drop&Insert
VPN & Firewall Solutions
The Cisco 1700 combined with the WIC-1SHDSL provides:
Symmetrical WAN speeds (up to 2.3 Mbps) over a single copper pair
Multiple G.shdsl WICs per Cisco 1700 chassis
Support for voice over IP (VoIP) over DSL with IP quality of service (QoS)
Support for IP QoS map to ATM class of service (CoS)
Back-to-back operation or operation via DSL access multiplexer (DSLAM)
Support for up to 23 virtual circuits per WIC
Longer Reach Than Other DSL Technologies:
Provides 2.3 Mbps at up to 11,000 feet on 26 AWG (subject to line conditions)
Operates at distances up to 22,000 feet
Repeatable for even greater distances
Spectral friendly technology gives less interference with other transmission technologies
Voice Support:
Support for VoIP over DSL with QoS using H.323 signaling
Cisco IOS Software and Platform Support:
First supported in Cisco IOS Software Release 12.2(4)XL
Functions in built-in VIC/WIC slots
Country Support:
Complies with ITU G.991.2 standard
Worldwide-accepted technology
System Requirements: Processor Requirements:
•The MPC 860 microprocessor (revision B5 or later) is required for using the WIC-1SHDSL card.
Software Requirements:
•The WIC-1SHDSL card requires Cisco IOS Release 12.2(4)XL or later.
Memory Requirements:
•16 MB of Flash memory
•64 MB of dynamic RAM (DRAM)
Compatibility:
Cisco 1700 Series
Cisco 2600 Series
Cisco 3600 Series
Cisco 3700 Series
Cisco G.SHDSL line card in the Cisco 6015, Cisco 6130, Cisco 6160, or Cisco 6260 digital subscriber line access multiplexer (DSLAM)
Cisco 1700 Series
Cisco 2600 Series
Cisco 3600 Series
Cisco 3700 Series
Cisco G.SHDSL line card in the Cisco 6015, Cisco 6130, Cisco 6160, or Cisco 6260 digital subscriber line access multiplexer (DSLAM)
Certifications & Standards: Standards:
•ITU-T G.991.2 (SHDSL)
Scalability: Scalable Bandwidth:
•Delivers from 192 kbps to 2.3 Mbps bandwidth (symmetrical)
•Rate adaptable using G.hs (handshake) - automatically selects optimal speed setting
