WIC-1ADSL-DG

Manufacturer Part#: WIC-1ADSL-DG
WIC-1ADSL-DG   1 x ADSLoPOTS - WAN Interface Card (WIC)

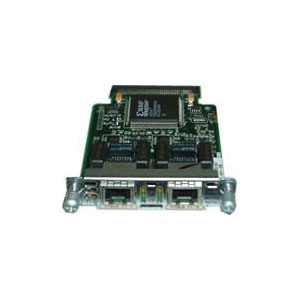

WIC-1ADSL-DG Cisco WAN Interface card

WIC-1ADSL-DG
The ADSL WAN interface card (WIC) on the Cisco 1700/2600/3700 series routers deliver business class ADSL over basic telephone service or otherwise known as Plain Old Telephone Service (POTS) (through WIC-1ADSL-DG) services for small and medium-sized businesses to enterprise branch offices . This ADSL WIC, combined with the Cisco 1700/2600/3700 Series routers, enable service providers and resellers to offer additional services by supporting features for business-class security, voice integration, differentiated classes of service, and managed network access with Cisco IOS Software. These value-added features, along with the manageability and reliability of Cisco IOS technology, provide the mission-critical networking that businesses require.

Cisco WIC-1ADSL-DG General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: WIC-1ADSL-DG WAN Interface Card (WIC)
Product Type: WAN Interface Card (WIC)

Cisco WIC-1ADSL-DG Interfaces/Ports:
Interfaces/Ports: 1 x ADSLoPOTS WAN
Interfaces/Ports Details: 1 x RJ-11 ADSLoPOTS WAN

Cisco WIC-1ADSL-DG Media & Performance:
Data Transfer Rate: 864Kbps ADSLoPOTS
Data Transfer Rate: 8Mbps ADSLoPOTS

Cisco WIC-1ADSL-DG Processor & Chipset:
Processor: Not Applicable

Cisco WIC-1ADSL-DG Memory:
Memory: Not Applicable

Cisco WIC-1ADSL-DG Storage:
Storage: Not Applicable

Cisco WIC-1ADSL-DG Environmental Conditions:
Altitude: Not Applicable

Cisco WIC-1ADSL-DG Miscellaneous:
Additional Information:
Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt)
Complies with ANSI T1.413 issue 2
Dying Gasp Support
Supports ATM AAL5
Supports ATM Class of Service features CBR, VBR-nrt, VBR-rt, UBR
Supports IP QoS
Supports up to 23 virtual circuits on WIC
DSLAM Interoperability:
Alcatel ASAM 1000 and 7300
Cisco 6000 Series DSLAMs
Lucent Stinger (24-port and 48-port linecards)
ECI HiFOCuS (ADI 918 and 930 linecards)-fourth quarter calendar year 2003
Interoperates with third party and Cisco DSLAMs

Applications of Cisco ADSL WICs:
Business-Class DSL with WAN Backup
Business Class Security
IP and ATM Quality of Service
Application-Aware Networking with IP QoS
Traffic Management Using ATM CoS
QoS Features:
LLQ, Diffserv, CAR, WRED, MLPPP w/LFI on single VC:
Platforms: Cisco 1700
Initial Cisco IOS Release Support: 12.2(2)XQ1
Cisco IOS Release T train support: 12.2(13)T
Platforms: Cisco 2610-51/3600
Initial Cisco IOS Release Support: 12.2(4)XK
Cisco IOS Release T train support: 12.2(13)T
Platforms: Cisco 2600XM/2691/3700
Initial Cisco IOS Release Support: 12.2(8)YN
Cisco IOS Release T train support: 12.3(2)T
ATM CLP Bit Marking, MLPPP across interfaces and multiple VCs, cRTP, Tx-Ring Buffer, FRF.5 and FRF.8, Serial Communications Controller Clock Rate:
Platforms: Cisco 1700/2600XM/3640/3640A/3660*
Initial Cisco IOS Release Support: 12.2(8)YN
Cisco IOS Release T train support: 12.3(2)T
Platforms: Cisco 2691/3700*
Initial Cisco IOS Release Support: 12.2(15)ZJ
Cisco IOS Release T train support: 12.3(2)T
*Note: These features will not be supported on Cisco 2610-50 (non-XM) and 3620 series routers due to platform memory limitations.
Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt)
Complies with ANSI T1.413 issue 2
Dying Gasp Support
Supports ATM AAL5
Supports ATM Class of Service features CBR, VBR-nrt, VBR-rt, UBR
Supports IP QoS
Supports up to 23 virtual circuits on WIC
DSLAM Interoperability:
Alcatel ASAM 1000 and 7300
Cisco 6000 Series DSLAMs
Lucent Stinger (24-port and 48-port linecards)
ECI HiFOCuS (ADI 918 and 930 linecards)-fourth quarter calendar year 2003
Interoperates with third party and Cisco DSLAMs
