WIC-1DSU-T1
WIC-1DSU-T1

WIC-1DSU-T1

Product Description

Manufacturer Part#: WIC-1DSU-T1

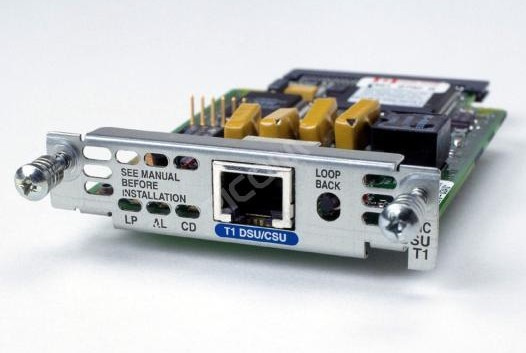

WIC-1DSU-T1 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
WIC-1DSU-T1Cisco WAN Interface card

WIC-1DSU-T1
The 1-port integrated T1/FT1 DSU/CSU WAN interface card provides a single serial connection at speeds up to T1 rates. This interface card inserts into a Cisco mixed-media network module or directly into a Cisco WAN Interface Card (WIC) expansion slot.

Cisco WIC-1DSU-T1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: WAN Interface Card (WIC)
Product Type: WAN Interface Card (WIC)

Cisco WIC-1DSU-T1 Interfaces/Ports:
Interfaces/Ports: 1 x T1/FT1 WAN
Interfaces/Ports Details: 1 x RJ-45 T1/FT1 WAN

Cisco WIC-1DSU-T1 Management & Protocols:
Management: Management:
•Telnet / Console
•SNMP
•SNMP Traps

Cisco WIC-1DSU-T1 Controls/Indicators:
Status Indicators:
CD (Data Carrier Detect)
LP (LooPback)
AL (Alarm)
CD (Data Carrier Detect)
LP (LooPback)
AL (Alarm)

Cisco WIC-1DSU-T1 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage

Cisco WIC-1DSU-T1 Physical Characteristics:
Dimensions: 0.8 Height x 3.1 Width x 4.8 Depth
Shipping Dimensions: 2.25 Height x 11 Width x 20.5 Depth
Weight: 0.13 lb to 0.19 lb
Shipping Weight: 1.25 lb

Cisco WIC-1DSU-T1 Miscellaneous:
Additional Information:
Refurbished
No Returns

Modular Router Solutions:
LAN-to-LAN Routing
VPN & Firewall Solutions

Network Interface:
Transmit Bit Rate: 1.544 Mbps +/- 50 bps
Receive Bit Rate: 1.544 Mbps +/- 100 bps
Line Code: AMI, B8ZS
AMI Ones Density:
- Forced / bit robbing (N X56)
- HDLC data inversion: (N X64)
Framing Format: D4 (SF) and ESF
Output level (LBO): 0, -7.5, or -15 dB
Input Level: +1dB0 down to -24 dB0

Data Rates:
N X 64 kbps (N = 1 through 24); nonchannelized
N X 56 kbps (N = 1 through 24); nonchannelized

Framing Format:
D4 (SF)
ESF

Diagnostics:
Loopbacks
Self Test
Test Patterns (BERT)
Network (T1) Alarms
Performance Reports / Error Counters
LEDs

Physical Limitation of Serial Modules per Chassis:
Cisco 3640: Eight
Cisco 3620: Four

Supported Features of Serial Network Modules:
Synchronous
Full Duplex

Comments:
When used in a Cisco 3600 series router, requires a LAN / WAN network module: NM-1E2W, NM-2E2W, or NM-1E1R2W
Refurbished
No Returns

Modular Router Solutions:
LAN-to-LAN Routing
VPN & Firewall Solutions

Network Interface:
Transmit Bit Rate: 1.544 Mbps +/- 50 bps
Receive Bit Rate: 1.544 Mbps +/- 100 bps
Line Code: AMI, B8ZS
AMI Ones Density:
- Forced / bit robbing (N X56)
- HDLC data inversion: (N X64)
Framing Format: D4 (SF) and ESF
Output level (LBO): 0, -7.5, or -15 dB
Input Level: +1dB0 down to -24 dB0

Data Rates:
N X 64 kbps (N = 1 through 24); nonchannelized
N X 56 kbps (N = 1 through 24); nonchannelized

Framing Format:
D4 (SF)
ESF

Diagnostics:
Loopbacks
Self Test
Test Patterns (BERT)
Network (T1) Alarms
Performance Reports / Error Counters
LEDs

Physical Limitation of Serial Modules per Chassis:
Cisco 3640: Eight
Cisco 3620: Four

Supported Features of Serial Network Modules:
Synchronous
Full Duplex

Comments:
When used in a Cisco 3600 series router, requires a LAN / WAN network module: NM-1E2W, NM-2E2W, or NM-1E1R2W

Compatibility: Supported Platforms & Minimum IOS Versions:
•3745 - 12.2(11)YT or 12.2(13)T
•3725 - 12.2(11)YT or 12.2(13)T
•3660 series - 12.0(5)T
•3640 - 11.2(12)P
•3620 - 11.2(12)P
•2691 - 12.2(13)T
•2650 - 12.1(3)T
•2600XM Series - 12.1(14) or 12.2(8)T1
•2600 series - 11.3(4)T
•1720 - 12.0.1(XA3)
•1600 series - 11.2(12)P

Certifications & Standards: Regulatory Compliance:
•FCC Part 15 Class B
•FCC Part 68
•CS-03
•UL 1950 (3rd edition; incorporates UL 1459)

Standards:
•AT&T Pub 62411
•ANSI T1.403
