CISCO1721

Manufacturer Part#: CISCO1721

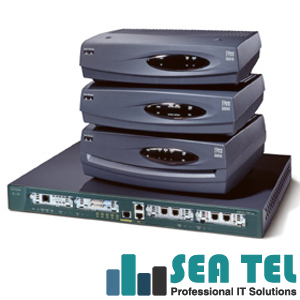

CISCO1721 1700 Series Modular Access Router

CISCO1721 - Access Router - 1 x VPN Module - 1 x 10/100Base-TX LAN

Cisco 1721 Modular access router is designed to provide a cost-effective integrated platform for small and medium-sized businesses and enterprise small branch offices. They provide flexibility and manageability to meet the most demanding and evolving business requirements such as multiservice data/voice/video/fax integration, business-class digital subscriber line (DSL), and comprehensive network security.

Cisco CISCO1721 Environmental Conditions:
Temperature: -20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Non-operating
Humidity: 5% to 95% Non-condensing Non-operating
Humidity: 10% to 85% Non-condensing Operating

Cisco CISCO1721 Physical Characteristics:
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Weight: 2.9 lb

Cisco CISCO1721 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1721 Modular Access Router
Product Type: Access Router

Cisco CISCO1721 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO1721 Media & Performance:
Connectivity Media: Category 5 UTP/STP 100Base-TX
Connectivity Media: Category 3, 4, 5 UTP 10Base-T
Distance Support: 328.08 ft

Cisco CISCO1721 I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (1 Total) VPN Module
Expansion Slots: (2 Total) WIC

Cisco CISCO1721 Management & Protocols:
Management:
IEEE 802.1Q VLAN routing
Cisco Easy VPN Remote
Cisco Easy VPN Server
Cisco Security Device Manager
Manageable via Simple Network Management Protocol (SNMP)
CiscoView
CiscoWorks 2000
Cisco ConfigMaker
Setup Configuration Utility
Cisco AutoInstall
Telnet
RADIUS
Remote Monitoring (RMON)
CiscoWorks Small Network Management Solution
NetFlow
IEEE 802.1Q VLAN routing
Cisco Easy VPN Remote
Cisco Easy VPN Server
Cisco Security Device Manager
Manageable via Simple Network Management Protocol (SNMP)
CiscoView
CiscoWorks 2000
Cisco ConfigMaker
Setup Configuration Utility
Cisco AutoInstall
Telnet
RADIUS
Remote Monitoring (RMON)
CiscoWorks Small Network Management Solution
NetFlow

Cisco CISCO1721 Processor & Chipset:
Processor: RISC

Cisco CISCO1721 Memory:
Standard Memory: 64MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1721 Controls/Indicators:
Controls: 1 x Power Switch
Status Indicators:
Back Panel LEDs:

Cisco CISCO1721 Software:
Operating System:
Cisco 1700 IOS IP BASE
Cisco 1700 IOS IP BASE

Cisco CISCO1721 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 47 Hz to 64 Hz
Power Consumption: 20W Maximum

Cisco CISCO1721 Environmental Conditions:
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
