Product Description
Manufacturer Part#: CISCO1712-VPN/K9

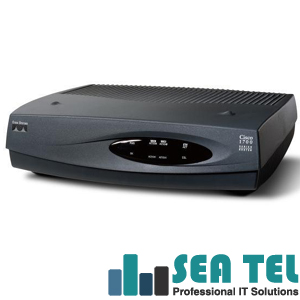

CISCO1712-VPN/K9 1700 Series Modular Access Router
CISCO1712-VPN/K9 - Security Router - 4 x 10/100Base-TX LAN, 1 x ISDN BRI (S/T) WAN, 1 x 10/100Base-TX WAN
The Cisco 1712 Security Access Router offers an all-in-one security, routing, and switching solution for enterprise small branch offices and small and medium sized businesses; with built-in Fast Ethernet LAN switching, Fast Ethernet port for DSL or broadband modem connectivity, integrated IOS Security and backup WAN for link redundancy to help ensure high availability of critical business applications. The Cisco 1712 Router provides businesses a cost-effective migration path from ISDN to ADSL services. The Cisco 1712 Router allows customers to deploy ISDN access initially while providing a migration path to ADSL when the service becomes available, without purchasing a new router.
Cisco CISCO1712-VPN/K9 General Information:
Product Name: 1712 Security Access Router
Product Type: Security Router
Cisco CISCO1712-VPN/K9 Interfaces/Ports:
Number of Ports: 5
Fast Ethernet Port: Yes
Interfaces/Ports: 4 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO1712-VPN/K9 Management & Protocols:
Protocols: PPP
Protocols: RSVP
Cisco CISCO1712-VPN/K9 Processor & Chipset:
Processor: Motorola 862P 100MHz
Cisco CISCO1712-VPN/K9 Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB
Cisco CISCO1712-VPN/K9 Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco CISCO1712-VPN/K9 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter
Cisco CISCO1712-VPN/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Cisco CISCO1712-VPN/K9 Physical Characteristics:
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Weight: 2.9 lb
CISCO1712-VPN/K9 1700 Series Modular Access Router
CISCO1712-VPN/K9 - Security Router - 4 x 10/100Base-TX LAN, 1 x ISDN BRI (S/T) WAN, 1 x 10/100Base-TX WAN
The Cisco 1712 Security Access Router offers an all-in-one security, routing, and switching solution for enterprise small branch offices and small and medium sized businesses; with built-in Fast Ethernet LAN switching, Fast Ethernet port for DSL or broadband modem connectivity, integrated IOS Security and backup WAN for link redundancy to help ensure high availability of critical business applications. The Cisco 1712 Router provides businesses a cost-effective migration path from ISDN to ADSL services. The Cisco 1712 Router allows customers to deploy ISDN access initially while providing a migration path to ADSL when the service becomes available, without purchasing a new router.
Cisco CISCO1712-VPN/K9 General Information:
Product Name: 1712 Security Access Router
Product Type: Security Router
Cisco CISCO1712-VPN/K9 Interfaces/Ports:
Number of Ports: 5
Fast Ethernet Port: Yes
Interfaces/Ports: 4 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO1712-VPN/K9 Management & Protocols:
Protocols: PPP
Protocols: RSVP
Cisco CISCO1712-VPN/K9 Processor & Chipset:
Processor: Motorola 862P 100MHz
Cisco CISCO1712-VPN/K9 Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB
Cisco CISCO1712-VPN/K9 Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco CISCO1712-VPN/K9 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter
Cisco CISCO1712-VPN/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Cisco CISCO1712-VPN/K9 Physical Characteristics:
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Weight: 2.9 lb
| Sea Tel International Co., Limited Cisco 1700 Series Router | |||
| CISCO1760 | CISCO1721-ADSLI | CISCO1751-VPN/K9 | CISCO1712-VPN/K9 |
| CISCO1760-V-CCME | CISCO1721-SHDSL | CISCO1751-VPN/K9-A | CISCO1751 |
| CISCO1760-V-SRST | CISCO1721-VPN/K9 | CISCO1760-ADSL | CISCO1720-ADSL |
| CISCO1701-K9 | CISCO1721-VPN/K9-A | CISCO1760-V3PN/K9 | CISCO1720 |
| CISCO1710-VPN-M/K9 | CISCO1750 | CISCO1760-VPN/K9 | CISCO1751-V |
| CISCO1720-VPN-M/K9 | CISCO1750-2V | CISCO1760-VPN/K9-A | CISCO1721 |
| CISCO1720-VPN-M/K8 | CISCO1750-4V | CISCO1760-V | |
| CISCO1721-ADSL | CISCO1750-ADSL | CISCO1711-VPN/K9 | |
