CISCO1711-VPN/K9

Manufacturer Part#: CISCO1711-VPN/K9

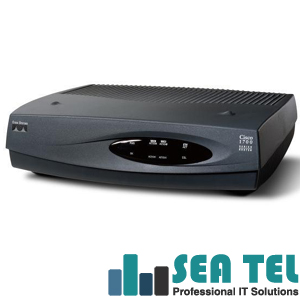

CISCO1711-VPN/K9 1700 Series Modular Access Router

CISCO1711-VPN/K9 - Cisco 1711 security access router is ideal for providing secure/reliable Internet and corporate network connectivity to enterprise small branch offices and small and medium sized businesses. It offers an all-in-one security and routing solution with built-in Fast Ethernet LAN switching, Fast Ethernet WAN and analog modem backup interface to help ensure high availability of critical business applications. Cisco 1711 router also supports integrated network security services that help ensure protection of the network and to secure data traveling over the internet.

Cisco CISCO1711-VPN/K9 Management & Protocols:
Management:
16 VLANs supported (IEEE 802.1Q)
Command line interface
Supports Telnet and SNMP
Spanning Tree Protocol
Cisco Security Device Manager
Supports AAA
Cisco AutoSecure
Cisco Easy VPN Server and Easy VPN Remote
CiscoWorks
CiscoView
DHCP
16 VLANs supported (IEEE 802.1Q)
Command line interface
Supports Telnet and SNMP
Spanning Tree Protocol
Cisco Security Device Manager
Supports AAA
Cisco AutoSecure
Cisco Easy VPN Server and Easy VPN Remote
CiscoWorks
CiscoView
DHCP

Cisco CISCO1711-VPN/K9 Processor & Chipset:
Processor: 1 x Motorola 862P 100MHz

Cisco CISCO1711-VPN/K9 Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1711-VPN/K9 Controls/Indicators:
Controls: Power Switch
Status Indicators:
Back Panel LEDs:
•WIC1 OK LED
•MOD OK LED
•WIC0 OK LED

Cisco CISCO1711-VPN/K9 Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES

Cisco CISCO1711-VPN/K9 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 47 Hz to 64 Hz
Power Consumption: 20W Maximum

Cisco CISCO1711-VPN/K9 Environmental Conditions:
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Non-operating
Humidity: 5% to 95% Non-condensing Relative Humidity Non-operating
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1711-VPN/K9 Physical Characteristics:
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Weight: 2.9 lb
