CISCO1720

Manufacturer Part#: CISCO1720

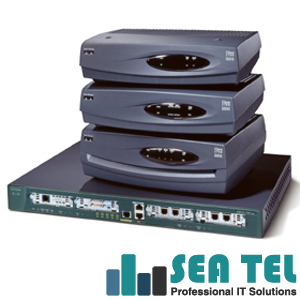

CISCO1720 1700 Series Modular Access Router

CISCO1720 - 10/100BASET MODULAR ROUTER W/2 WAN SLOTS

Cisco 1720 Modular Access Router is designed to help organizations embrace the productivity benefits of e-business applications. The Cisco 1720 router enables e-business by delivering secure Internet, intranet, and extranet access with virtual private networks (VPNs) and firewall technology.

Cisco CISCO1720 General Information:
Brand Name: Cisco
Product Series: 1700
Product Name: 1720 Modular Access Router
Product Type: Router

Cisco CISCO1720 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO1720 Media & Performance:
Connectivity Media: Category 5 UTP/STP 10/100Base-TX
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T
Distance Support: 328 ft
Forwarding/Filtering Rate: 8.4Kpps

Cisco CISCO1720 I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (1 Total) Expansion Slot
Expansion Slots: (2 Total) WIC
Modules: Not Included

Cisco CISCO1720 Management & Protocols:
Management:
SNMP
CiscoView
CiscoWorks 2000
Telnet
Console port
SNMP
CiscoView
CiscoWorks 2000
Telnet
Console port

Cisco CISCO1720 Processor & Chipset:
Processor: MPC860 RISC

Cisco CISCO1720 Memory:
Standard Memory: 32MB
Maximum Memory: 48MB
Memory Technology: DRAM
Flash Memory: 8 MB

Cisco CISCO1720 Controls/Indicators:
Controls: Power Switch
Status Indicators: Rear-Panel LEDs:
•WIC 0 OK
•FDX
•100
•LNK
•WIC1 OK

Cisco CISCO1720 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter

Cisco CISCO1720 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1720 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Shipping Dimensions: 7 Height x 8 Width x 9 Depth
Weight: 2.9 lb
Weight: 2.6 lb
Shipping Weight: 1.5 lb
