CISCO1760-VPN/K9-A

Manufacturer Part#:  CISCO1760-VPN/K9-A

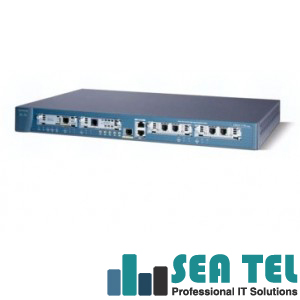

CISCO1760-VPN/K9-A 1700 Series Modular Access Router

CISCO1760-VPN/K9-A - Router - 1 x Expansion Slot - 1 x 10/100Base-TX LAN, 1 x ADSL WAN

Cisco 1760 router, as a modular platform in a 19-inch rack-mount form factor, offers customers secure Internet and intranet access, as well as the capability to implement a variety of e-business and voice applications. This includes voice over IP (VoIP), virtual private network (VPN) access, and business-class digital subscriber line (DSL) as required.

Cisco CISCO1760-VPN/K9-A General Information:
Product Type: Router

Cisco CISCO1760-VPN/K9-A Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x ADSL WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO1760-VPN/K9-A Media & Performance:
Connectivity Media: Cable Twisted Pair

Cisco CISCO1760-VPN/K9-A I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (2 Total) VIC/WIC
Expansion Slots: (1 Total) Expansion Slot
Expansion Slots: (2 Total) VIC
Modules: ADSL WIC
Modules: VPN Acceleration Module

Cisco CISCO1760-VPN/K9-A Management & Protocols:
Management:
Supports Cisco Config maker v.2.6, Manageable via SNMP
Supports IEEE 802.1Q VLAN
Device manager for routers
Supports Cisco Config maker v.2.6, Manageable via SNMP
Supports IEEE 802.1Q VLAN
Device manager for routers

Cisco CISCO1760-VPN/K9-A Processor & Chipset:
Processor: 1 x Motorola MPC860

Cisco CISCO1760-VPN/K9-A Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1760-VPN/K9-A Controls/Indicators:
Status Indicators:
Port status
link activity
power
Port status
link activity
power

Cisco CISCO1760-VPN/K9-A Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES

Cisco CISCO1760-VPN/K9-A Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz to 60 Hz
Power Consumption: 50W Maximum Operating

Cisco CISCO1760-VPN/K9-A Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1760-VPN/K9-A Physical Characteristics:
Color: Blue
Form Factor: Rack-mountable
Dimensions: 1.7 Height x 17.5 Width x 12.8 Depth
Shipping Dimensions: 9 Height x 20 Width x 22.5 Depth
Weight: 9.4 lb
Shipping Weight: 13 lb
