CISCO1721-VPN/K9-A

Manufacturer Part#:  CISCO1721-VPN/K9-A

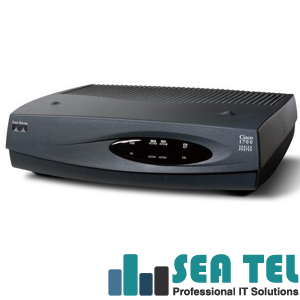

CISCO1721-VPN/K9-A - 1700 Series Modular Access Router

CISCO1721-VPN/K9-A - 1721 Vpn Bnd W/Adsl Wic,Vpn Mod,96Mb Dr,32Mb Fl,Ip+/Fw/3Des

Enhanced Cisco 1721 Modular Access Router is designed to help organizations embrace the productivity benefits of e-business applications. The Cisco 1721 router enable e-business by delivering secure Internet, intranet, and extranet access with virtual private networks (VPNs) and firewall technology.

Cisco CISCO1721-VPN/K9-A General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1721 Router
Product Type: Router

Cisco CISCO1721-VPN/K9-A Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x ADSL ADSL WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO1721-VPN/K9-A Media & Performance:
Connectivity Media: Cable Twisted Pair

Cisco CISCO1721-VPN/K9-A I/O Expansions:
Number of Expansion Slots: 2
Expansion Slots: (2 Total) WIC
Modules: ADSL WIC
Modules: VPN Acceleration Module

Cisco CISCO1721-VPN/K9-A Management & Protocols:
Management:
Device manager for routers (ROUTER-SDM)

CISCO1721-VPN/K9-A Network Management and Installation Tools:
CiscoWorks2000
CiscoView, part of CiscoWorks2000
CiscoWorks Small Network Management Solution (SNMS)
Cisco ConfigMaker
Device manager for routers (ROUTER-SDM)
Cisco CISCO1721-VPN/K9-A Memory

Cisco CISCO1721-VPN/K9-A Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES

Cisco CISCO1721-VPN/K9-A Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 47 Hz to 64 Hz
Power Consumption: 20W Operating

Cisco CISCO1721-VPN/K9-A Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1721-VPN/K9-A Physical Characteristics:
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Shipping Dimensions: 8 Height x 11 Width x 13 Depth
Weight: 2.9 lb
Shipping Weight: 4 lb
