CISCO1750

Manufacturer Part#: CISCO1750

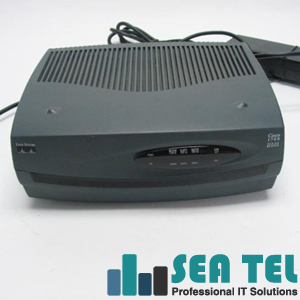

CISCO1750 1700 Series Modular Access Router

CISCO1750 - 10/100 MODULAR ROUTER W/1VIC, 2WIC/VIC S

Cisco 1750 features a modular architecture that enables users to cost-effectively upgrade or add WAN and voice interfaces to accommodate changing requirements and growth. Integrated network services and functions, including an optional firewall, CSU/DSU, and VPN features, reduce the complexity of deploying and managing branch office solutions. Most important, the Cisco 1750 offers investment protection with a RISC architecture and features to support new technologies and applications, including voice/fax/data integration and VPNs, when users are ready to deploy them.

Cisco CISCO1750 Original Manufacturer Warranty:
Standard Warranty: 1 Year Limited

Cisco CISCO1750 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1750 Modular Access Router
Product Type: Access Router

Cisco CISCO1750 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO1750 Media & Performance:
Connectivity Media: Category 5 UTP/STP 10/100Base-TX
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T
Distance Support: 328.08 ft

Cisco CISCO1750 I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (2 Total) VIC/WIC
Expansion Slots: (1 Total) DIMM
Expansion Slots: (1 Total) VIC
Expansion Slots: (1 Total

Cisco CISCO1750 Management & Protocols:
Management:
SNMP
CiscoView
CiscoWorks 2000
Cisco Service Management (CSM)
Telnet
Console port
Cisco ConfigMaker
Cisco Voice Manager support
Setup configuration utility
AutoInstall
Easy IP
DHCP Server
SNMP
CiscoView
CiscoWorks 2000
Cisco Service Management (CSM)
Telnet
Console port
Cisco ConfigMaker
Cisco Voice Manager support
Setup configuration utility
AutoInstall
Easy IP
DHCP Server

Cisco CISCO1750 Processor & Chipset:
Processor: Motorola MPC860T PowerQUICC 48MHz RISC

Cisco CISCO1750 Memory:
Standard Memory: 16MB
Maximum Memory: 48MB
Memory Technology: DRAM
Flash Memory: 4 MB

Cisco CISCO1750 Controls/Indicators:
Controls: 1 x Power Switch
Status Indicators:
Rear Panel LEDs:

Cisco CISCO1750 Software:
Operating System:
Cisco IOS IP

Cisco CISCO1750 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 47 Hz to 64 Hz
Power Consumption: 20W Maximum

Cisco CISCO1750 Environmental Conditions:
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Non-operating
Humidity: 5% to 95% Non-condensing Non-operating
Humidity: 10% to 85% Non-condensing Operating

Cisco CISCO1750 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 4 Height x 11.2 Width x 8.7 Depth
Weight: 3.5 lb
Weight: 3 lb
