Manufacturer Part#: CISCO1720-ADSL

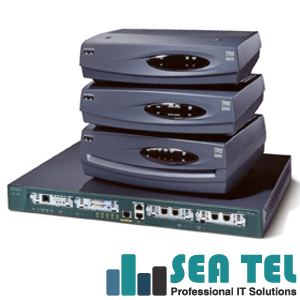

CISCO1720-ADSL 1700 Series Modular Access Router
CISCO1720-ADSL - Broadband Router - 1 x 10/100Base-TX LAN, 1 x ADSL WAN
The 1720 ADSL Modular Access Router delivers a flexible, integrated data access solution for small branch offices and smalland medium-sized businesses providing a tailored access solution. Preparing a small or medium-sized business or smallbranch office for the future means implementing networking equipment with three critical characteristics: flexibility to adaptto changing requirements, features and performance to support new WAN services, and integration of multiple networkfunctions to simplify deployment and management operations.
Cisco CISCO1720-ADSL General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1720 Access Router
Product Type: Access Router
Cisco CISCO1720-ADSL Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
DSL Port: Yes
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-11 ADSL ADSL WAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Cisco CISCO1720-ADSL Media & Performance:
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T
Connectivity Media: Category 5 UTP 10/100Base-TX
Connectivity Media: STP 10/100Base-TX
Cisco CISCO1720-ADSL I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) Expansion Slot
Modules: 1 x ADSL WIC
Cisco CISCO1720-ADSL Processor & Chipset:
Processor: 1 MPC860 RISC
Cisco CISCO1720-ADSL Memory:
Standard Memory: 32MB
Maximum Memory: 48MB
Memory Technology: DRAM
Flash Memory: 8 MB
Cisco CISCO1720-ADSL Controls/Indicators:
Status Indicators: Back Pannel LEDs:
Controls:
•Power switch
Cisco CISCO1720-ADSL Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter
Cisco CISCO1720-ADSL Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Cisco CISCO1720-ADSL Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Shipping Dimensions: 12 Height x 13.5 Width x 11 Depth
Weight: 2.6 lb
Shipping Weight: 7.18 lb
