CISCO1760-VPN/K9

Manufacturer Part#:  CISCO1760-VPN/K9

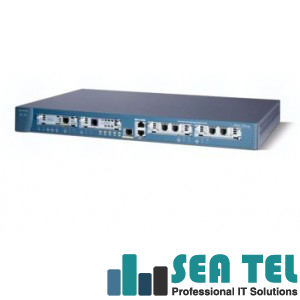

CISCO1760-VPN/K9 1700 Series Modular Access Router

CISCO1760-VPN/K9 - Access Router - 2 x VIC, 1 x Expansion Slot - 1 x 10/100Base-TX LAN

CISCO1760-VPN/K9 Processor & Chipset:
Processor: 1 x Motorola MPC860

Cisco CISCO1760-VPN/K9 Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1760-VPN/K9 Controls/Indicators:
Status Indicators:
Port status
link activity
power
Port status
link activity
power

Cisco CISCO1760-VPN/K9 Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES

Cisco CISCO1760-VPN/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC

Cisco CISCO1760-VPN/K9 Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco CISCO1760-VPN/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1760 Router
Product Type: Router

Cisco CISCO1760-VPN/K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO1760-VPN/K9 Media & Performance:
Connectivity Media: Cable Twisted Pair

Cisco CISCO1760-VPN/K9 I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (1 Total) Expansion Slot
Expansion Slots: (2 Total) VIC/WIC
Expansion Slots: (2 Total) VIC
Modules: VPN Acceleration Module

Cisco CISCO1760-VPN/K9 Power Description:
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz to 60 Hz
Power Consumption: 50W Maximum Operating

Cisco CISCO1760-VPN/K9 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1760-VPN/K9 Physical Characteristics:
Color: Blue
Form Factor: Rack-mountable
Dimensions: 1.7 Height x 17.5 Width x 12.8 Depth
Weight: 9.4 lb
Shipping Weight: 18 lb
