CISCO1760-V-SRST

Manufacturer Part#: CISCO1760-V-SRST

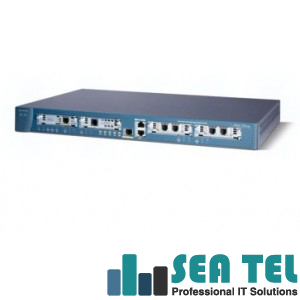

CISCO1760-V-SRST 1700 Series Modular Access Router

CISCO1760-V-SRST - Access Router - 2 x VIC - 1 x 10/100Base-TX LAN

Cisco 1760 Modular Access Router offers small and medium-sized businesses and enterprise small branch offices a 19-inch rack-mount access solution designed to enable them to grow their e-business capabilities. The Cisco 1760 Modular Access Router address the needs of customers who want to deploy e-business applications now or in the future.The Cisco 1760 router, as a modular platform in a 19-inch rack-mount form factor, offers customers secure Internet and intranet access, as well as the capability to implement a variety of e-business and voice applications. This includes voice over IP (VoIP), virtual private network (VPN) access, and business-class digital subscriber line (DSL).

Cisco CISCO1760-V-SRST Management & Protocols:
•SNMP
•CiscoView
•Telnet
•console port
•Cisco Configmaker v.2.6


Cisco CISCO1760-V-SRST General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1760 Access Router
Product Type: Access Router

Cisco CISCO1760-V-SRST Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO1760-V-SRST Media & Performance:
Connectivity Media: Category 5 100Base-TX
Connectivity Media: Category 3, 4, 5 10Base-T
Distance Support: 328 ft

Cisco CISCO1760-V-SRST I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (2 Total) VIC/WIC
Expansion Slots: (2 Total) VIC
Modules: 1 x PVDM-256K-4 Packet Voice/Fax DSP Module

Cisco CISCO1760-V-SRST Management & Protocols:
Protocols: VoFR
Protocols: H.323 v2
Protocols: SIP
Protocols: WFQ
Protocols: MGCP
Protocols: RSVP
Protocols: PPPCE
Protocols: PPP

Cisco CISCO1760-V-SRST Processor & Chipset:
Processor: Motorola MPC860

Cisco CISCO1760-V-SRST Memory

Standard Memory: 128MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1760-V-SRST Software:
Operating System:

•Cisco 1700 IOS IP/ADSL/VOX PLUS

Cisco CISCO1760-V-SRST Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 50W Maximum
Power Source: Power Supply

Cisco CISCO1760-V-SRST Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1760-V-SRST Physical Characteristics:
Form Factor: Rack-mountable
Dimensions: 1.7 Height x 17.5 Width x 12.8 Depth
Shipping Dimensions: 9 Height x 18 Width x 22 Depth
Weight: 9.4 lb
Shipping Weight: 15 lb
