AIR-AP1131AG-S-K9

Manufacturer Part#: Cisco AIR-AP1131AG-S-K9

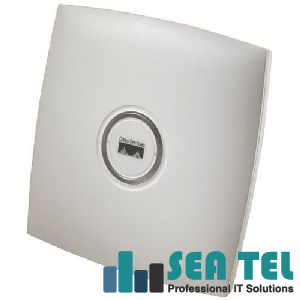

AIR-AP1131AG-S-K9 Cisco Wireless Access Point (AP)

AIR-AP1131AG-S-K9 Wireless Access Point - IEEE 802.11a/b/g 54Mbps - 1 x 10/100Base-TX

The Cisco Aironet 1131AG Wireless Access Point is an IEEE 802.11a/b/g fixed-configuration, dual-band access point. Built in to the access point are two radios, each with diversity antennas that provide omnidirectional coverage.

Cisco AIR-AP1131AG-S-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1130 AG
Product Model: 1131AG
Product Name: Aironet 1131AG Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-AP1131AG-S-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.472 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Antenna Gain: 3 dBi
Antenna Gain: 4.5 dBi
Indoor Antenna Range: 450 ft
Outdoor Antenna Range: 950 ft
Wireless Transmission Speed: 54 Mbps

Cisco AIR-AP1131AG-S-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1131AG-S-K9 Management & Protocols:
•Web browser management GUI
•Telnet
•SNMP
•CiscoWorks

Cisco AIR-AP1131AG-S-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-AP1131AG-S-K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Ceiling-mountable
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb

Cisco AIR-AP1131AG-S-K9 Miscellaneous:
•32 MB RAM
•16 MB FLASH
