AIR-LAP1242AG-S-K9

Manufacturer Part#: Cisco AIR-LAP1242AG-S-K9

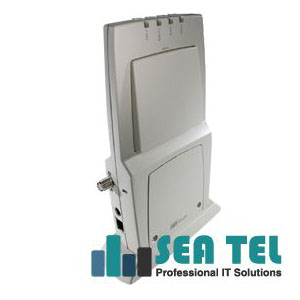

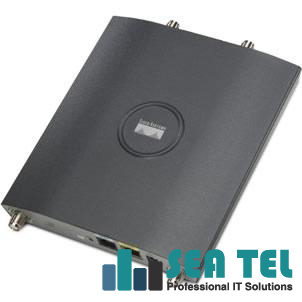

AIR-LAP1242AG-S-K9 Cisco Wireless Access Point (AP)

AIR-LAP1242AG-S-K9 - Wireless Access Point - 54Mbps

Cisco Aironet 1242AG Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. These IEEE 802.11a/b/g access points are designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. The Cisco Aironet 1242AG provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE).


Cisco AIR-LAP1242AG-S-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG
Product Model: 1242AG
Product Name: Aironet 1242AG Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-LAP1242AG-S-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.47 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 950 ft
Channels: 12 Channel Operating IEEE 802.11b/g Singapore
Channels: 13 Channel Operating IEEE 802.11b/g Singapore
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b

Cisco AIR-LAP1242AG-S-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN

Cisco AIR-LAP1242AG-S-K9 Management & Protocols:
Management:
Web browser management

Security Features:
AES

Cisco AIR-LAP1242AG-S-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-LAP1242AG-S-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
