Manufacturer Part#: Cisco AIR-LAP1131AG-A-K9

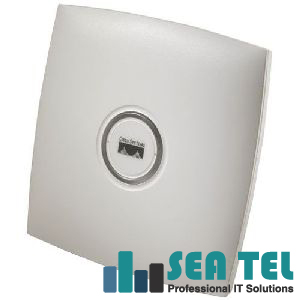

AIR-LAP1131AG-A-K9 - Cisco Wireless Points (AP)
AIR-LAP1131AG-A-K9 Specification:
802.11AG LWAPP AP INTEGRATED ANTENNAS FC
AIR-LAP1131AG-A-K9 General Information:
Product Line: Aironet
Product Series: 1100
Product Name: Aironet 1130AG IEEE 802.11a/b/g Lightweight Access Point
Product Type: Wireless Access Point
Cisco AIR-LAP1131AG-A-K9 Technical Information
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Modulation:
IEEE 802.11a:
OFDM
IEEE 802.11b:
CCK
IEEE 802.11g:
OFDM
AIR-LAP1131AG-A-K9 Interfaces/Ports
Number of Ports: 1
Fast Ethernet Port: Yes
Cisco AIR-LAP1131AG-A-K9 Technical Information:
Antenna Gain: 4.5 dBi
Antenna Type: Omni-directional Antenna
Indoor Antenna Range: 400 ft
Outdoor Antenna Range: 950 ft
Channels: Up to 19 Channel Non-overlapping IEEE 802.11a
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 12 Channel IEEE 802.11a FCC
Channels: 11 Channel IEEE 802.11b/g FCC
Wireless Transmission Speed: 108 Mbps
Cisco AIR-LAP1131AG-A-K9 Interfaces/Ports
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Cisco AIR-LAP1131AG-A-K9 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Cisco AIR-LAP1131AG-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 2
AIR-LAP1131AG-A-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1131AG-A-K9 Physical Characteristics
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb
