AIR-LAP1131G-P-K9

Manufacturer Part#: Cisco AIR-LAP1131G-P-K9

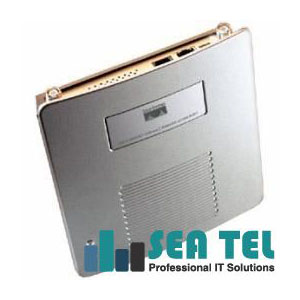

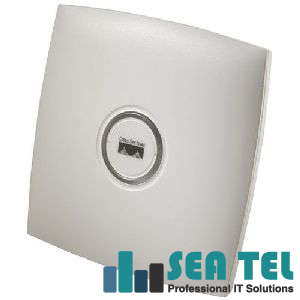

AIR-LAP1131G-P-K9 Cisco Wireless Access Point (AP)

AIR-LAP1131G-P-K9 - Wireless Access Point - 54Mbps

Cisco Aironet 1131G Wireless Access Point provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. With high-performing dual IEEE 802.11a and 802.11g radios, the Cisco Aironet 1131G Wireless Access Point provides a combined capacity of up to 108 Mbps to meet the needs of growing WLANs.

Cisco AIR-LAP1131G-P-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: LAP1131G
Product Name: LAP1131G Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-LAP1131G-P-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.472 GHz
Antenna Gain: 3 dBi
Antenna Type: Omni-directional Antenna
Indoor Antenna Range: 440 ft
Outdoor Antenna Range: 950 ft
Channels: 13 Channel Operating IEEE 802.11b/g Japan (TELEC 2)
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b

Cisco AIR-LAP1131G-P-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-LAP1131G-P-K9 Management & Protocols:
Management:
•Web based management
•CiscoWorks
•CiscoView
•Telnet
•SNMP

Security Features:
AES

Cisco AIR-LAP1131G-P-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-LAP1131G-P-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Form Factor: Wall-mountable
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb
