Manufacturer Part#: Cisco AIR-AP1220A-S-K9

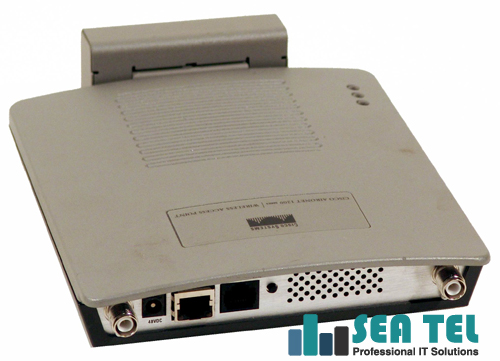

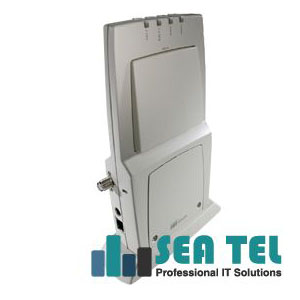

AIR-AP1220A-S-K9 Cisco Wireless Access Point (AP)
AIR-AP1220A-S-K9 Wireless Access Point - 54Mbps 1x
Cisco Aironet 1220 Access Point sets the enterprise standard for next-generation high performance, secure, manageable, and reliable wireless local-area networks (WLANs), while also providing investment protection because of its upgrade capability and compatibility with current standards. Taking advantage of Cisco IOS Software for ease-of-useand familiarity, the Cisco Aironet 1220 Access Point can be configured to meet customer-specific requirements at the time of purchase and then reconfigured and upgraded in the field as these requirements evolve. In addition, the Cisco Aironet 1220 Access Point creates a wireless infrastructure that provides customers with maximum mobility and flexibility, enabling constant connection to all network resources from virtually anywhere wireless access is deployed.
Cisco AIR-AP1220A-S-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a
UNII Band: Yes
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.35 GHz
Antenna Gain: 6 dBi
Antenna Type: Diversity Antenna
Antenna Type: Diversity Patch Antenna
Indoor Antenna Range: 165 ft
Outdoor Antenna Range: 1000 ft
Channels: 4 Channel Non-overlapping IEEE 802.11a Singapore
Channels: 4 Channel Operating IEEE 802.11a Singapore
Channels: 8 Channel Non-overlapping IEEE 802.11a America (FCC)
Channels: 8 Channel Operating IEEE 802.11a America (FCC)
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a
Transmission Speed Details: 6Mbps IEEE 802.11a
Modulation:
Orthogonal Frequency Division Multiplexing (OFDM)
64-QAM: 48 and 54 Mbps
16-QAM: 24 and 36 Mbps
QPSK: 12 and 18 Mbps
BPSK: 6 and 9 Mbps
Orthogonal Frequency Division Multiplexing (OFDM)
64-QAM: 48 and 54 Mbps
16-QAM: 24 and 36 Mbps
QPSK: 12 and 18 Mbps
BPSK: 6 and 9 Mbps
Cisco AIR-AP1220A-S-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink
Cisco AIR-AP1220A-S-K9 Management & Protocols:
Management:
Manage up to 16 VLANs
SNMP: MIB I and MIB II
DHCP
Telnet
HTTP
FTP
TFTP
QoS Support
Manage up to 16 VLANs
SNMP: MIB I and MIB II
DHCP
Telnet
HTTP
FTP
TFTP
QoS Support
AIR-AP1220A-S-K9 Security Features:
Message integrity check (MIC)
Remote Authentication Dial-In User Service (RADIUS)
Cisco Secure Access Control Server (ACS)
Message integrity check (MIC)
Remote Authentication Dial-In User Service (RADIUS)
Cisco Secure Access Control Server (ACS)
