Manufacturer Part#: Cisco CISCO3725-DC-U

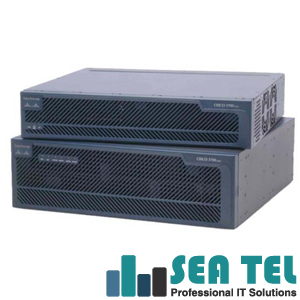

CISCO3725-DC-U Cisco 3700 Series Multiservice Access Router
CISCO3725-DC-U - 3725 Router W/Universal Power Supply 24/48 Volts
Cisco 3725 Multiservice Access Router is based on the same modular concepts as the Cisco 3600 Series but enable dramatically higher levels of performance and service integration for the branch office.
Cisco CISCO3725-DC-U General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3700
Product Name: 3745 Access Router
Product Type: Access Router
Cisco CISCO3725-DC-U Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO3725-DC-U Media & Performance:
Connectivity Media: Twisted Pair
Distance Support: 328 ft
Forwarding/Filtering Rate: 100Kpps
Cisco CISCO3725-DC-U I/O Expansions:
Number of Expansion Slots: 10
Expansion Slots: (2 Total) CompactFlash (CF) Card
Expansion Slots: (3 Total) WIC
Expansion Slots: (2 Total) AIM
Expansion Slots: (1 Total) HDSM
Expansion Slots: (2 Total) Network Module
Modules: Not Included
Cisco CISCO3725-DC-U Management & Protocols:
Management:
•SNMP
Protocols: ISDN
Protocols: ATM
Protocols: MGCP
Protocols: X.25
Cisco CISCO3725-DC-U Processor & Chipset:
Processor: 1 PMC-Sierra RM7061A 240MHz RISC
Cisco CISCO3725-DC-U Memory:
Standard Memory: 128MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 32 MB
Cisco CISCO3725-DC-U Power Description:
Input Voltage Range: 26V DC to 48V DC
Input Current: 4 A @ 36V DC to 60V DC
Input Current: 9 A @ 24V DC to 36V DC
Frequency: 50 Hz or 60 Hz
Power Consumption: 135W Maximum
Power Source: Power Supply
Cisco CISCO3725-DC-U Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 185 degrees F (85.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 460.66 BTU/h
Cisco CISCO3725-DC-U Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 3.5 Height x 17.1 Width x 14.7 Depth
Weight: 14 lb
