CISCO3745-V-CCME-A

Manufacturer Part#: Cisco CISCO3745-V-CCME-A

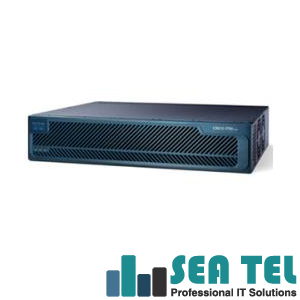

CISCO3745-V-CCME-A Cisco 3700 Series Multiservice Access Router

CISCO3745-V-CCME-A - Cisco3745,120-Phone Ccme,8-Chan Analog Dsp,128D/64F

Cisco 3700 Multiservice Access Routers are based on the same modular concepts as the Cisco 3600 Series but enable dramatically higher levels of performance and service integration for the branch office.


Cisco CISCO3745-V-CCME-A Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco CISCO3745-V-CCME-A General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3700
Product Name: 3745 Multiservice Access Router
Product Type: Router

Cisco CISCO3745-V-CCME-A Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO3745-V-CCME-A Media & Performance:
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 328 ft UTP
Forwarding/Filtering Rate: 225Kpps

Cisco CISCO3745-V-CCME-A I/O Expansions:
Number of Expansion Slots: 11
Expansion Slots: (3 Total) WIC
Expansion Slots: (4 Total) Network Module
Expansion Slots: (2 Total) CompactFlash (CF) Card
Expansion Slots: (2 Total) AIM

Cisco CISCO3745-V-CCME-A I/O Expansions:
Modules: 1 x NM-HD-2V Voice/Fax Network Module
Modules: 1 x CISCO3745-2FE-I/O IO Controller

Cisco CISCO3745-V-CCME-A Management & Protocols:
Management:
SNMP
SNMP

Protocols: TCP/IP

Cisco CISCO3745-V-CCME-A Processor & Chipset:
Processor: 1 PMC-Sierra RM7000A 350MHz RISC

Cisco CISCO3745-V-CCME-A Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO3745-V-CCME-A Software:
Operating System:
Cisco 3745 Ser IOS SP SERVICES
Cisco 3745 Ser IOS SP SERVICES


Cisco CISCO3745-V-CCME-A Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 5A @ 200V AC
Input Current: 10A @ 100V AC
Frequency: 50 Hz or 60 Hz
Power Consumption: 230W Maximum
Power Source: Power Supply

Cisco CISCO3745-V-CCME-A Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 185 degrees F (85.0 degrees C) Non-operating
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 784.83 BTU/h
Thermal Dissipation: 2013.26 BTU/h

Cisco CISCO3745-V-CCME-A Physical Characteristics:
Compatible Rack Unit: 3U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 5.25 Height x 17.25 Width x 16 Depth
Shipping Dimensions: 13 Height x 22 Width x 22 Depth
Weight: 32 lb
