C2651XM-2FE/VPN/K9

Manufacturer Part#: Cisco  C2651XM-2FE/VPN/K9

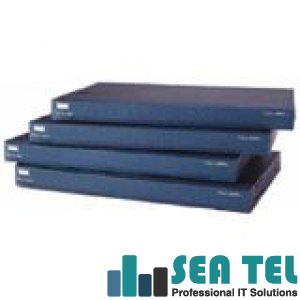

C2651XM-2FE/VPN/K9 Cisco 2600 Series Multiservice Router Platform

C2651XM-2FE/VPN/K9 - 2651Xm/Vpn Bundle,Aim-Vpn/Bpii/2Fe/Iosfw/Ipsec3Des,128Dram

Cisco C2651XM-2FE/VPN/K9 Management & Protocols:
Protocols: NAT

Cisco C2651XM-2FE/VPN/K9 Processor & Chipset:
Processor: 1 x Motorola PowerQUICC MPC860 80MHz

Cisco C2651XM-2FE/VPN/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco C2651XM-2FE/VPN/K9 Controls/Indicators:
Status Indicators:
Port status
Link activity
Power
Port status
Link activity
Power

Cisco C2651XM-2FE/VPN/K9 Software:
Operating System:
Cisco 2600 Ser IOS ADVANCED IP SERVICES
Cisco 2600 Ser IOS ADVANCED IP SERVICES

Cisco C2651XM-2FE/VPN/K9 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC

Cisco C2651XM-2FE/VPN/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2651XM Router
Product Type: Router

Cisco C2651XM-2FE/VPN/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management

Cisco C2651XM-2FE/VPN/K9 Media & Performance:
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 40Kpps

Cisco C2651XM-2FE/VPN/K9 I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) Network Module
Expansion Slots: (1 Total) AIM

Cisco C2651XM-2FE/VPN/K9 Management & Protocols:
Management:
SNMP
RMON
Device manager for routers (ROUTER-SDM)
SNMP
RMON
Device manager for routers (ROUTER-SDM)

Protocols: OSPF
Protocols: BGP
Protocols: IP Multicast
Protocols: RSVP
Protocols: RADIUS
Protocols: TCP/IP

Cisco C2651XM-2FE/VPN/K9 Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco C2651XM-2FE/VPN/K9 Power Description:
Input Current: 1.5A
Frequency: 47 Hz to 63 Hz

Cisco C2651XM-2FE/VPN/K9 Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: Up to 6500 ft Operating

Cisco C2651XM-2FE/VPN/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Shipping Dimensions: 11 Height x 20 Width x 23 Depth
Weight: 10.25 lb
