CISCO2621-DC

Manufacturer Part#: Cisco CISCO2621-DC

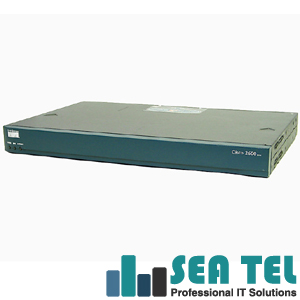

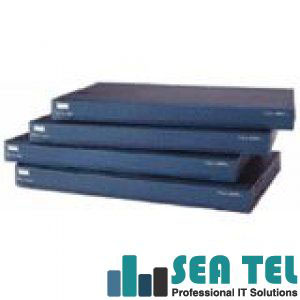

CISCO2621-DC Cisco 2600 Series Multiservice Router Platform

CISCO2621-DC - Access Router - 1 x AIM, 1 x Network Module - 2 x 10/100Base-TX LAN

Cisco CISCO2621-DC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2621 Access Router
Product Type: Access Router

Cisco CISCO2621-DC Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO2621-DC Media & Performance:
Connectivity Media: Twisted Pair
Distance Support: 328 ft
Forwarding/Filtering Rate: 25Kpps

Cisco CISCO2621-DC I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (1 Total) Network Module
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) AIM
Modules: Not Included

Cisco CISCO2621-DC Management & Protocols:
Management:
•SNMP
•RMON
Protocols: NAT
Protocols: TCP/IP
Protocols: OSPF
Protocols: BGP
Protocols: IP Multicast
Protocols: RADIUS
Protocols: RSVP

Cisco CISCO2621-DC Processor & Chipset:
Processor: 1 x Motorola PowerQUICC MPC860 50MHz

Cisco CISCO2621-DC Memory:
Standard Memory: 32MB
Maximum Memory: 64MB
Memory Technology: DRAM
Flash Memory: 8 MB

Cisco CISCO2621-DC Controls/Indicators:
Status Indicators: Front-Panel LEDs:
•POWER
•RPS
•ACTIVITY

Rear-Panel LEDs:
•LINK
•ACT
•FDX
•100 Mbps

Cisco CISCO2621-DC Power Description:
Input Voltage Range: -38V DC to -75V DC
Input Current: 2A
Power Consumption: 75W Maximum
Power Source: Power Supply

Cisco CISCO2621-DC Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 260 BTU/h

Cisco CISCO2621-DC Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Weight: 10.25 lb
