CISCO2610-RPS

Manufacturer Part#: Cisco Manufacturer Part#: Cisco  CISCO2610-RPS

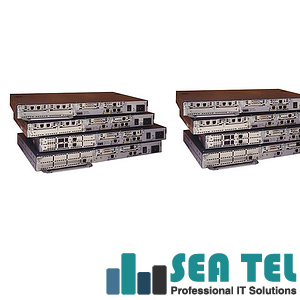

CISCO2610-RPS Cisco 2600 Series Multiservice Router Platform

CISCO2610-RPS - Access Router - 1 x 10/100Base-TX LAN, 1 x Token Ring LAN

Cisco CISCO2610-RPS General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2610 Access Router
Product Type: Access Router

Cisco CISCO2610-RPS Interfaces/Ports:
Number of Ports: 1
Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10Base-T 10Base-T LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO2610-RPS Media & Performance:
Connectivity Media: Twisted Pair 10Base-T
Forwarding/Filtering Rate: 15Kpps

Cisco CISCO2610-RPS I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (1 Total) Network Module
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) AIM
Modules: Not Included

Cisco CISCO2610-RPS Management & Protocols:
Management:

•Remote management through Router Aux port
•Local management through the Router Console port
Protocols: TCP/IP
Protocols: BGP
Protocols: OSPF
Protocols: IPSec
Protocols: L2TP

Cisco CISCO2610-RPS Processor & Chipset:
Processor: Motorola MPC860 PowerQUICC 40MHz

Cisco CISCO2610-RPS Memory:
Standard Memory: 32MB
Maximum Memory: 64MB
Memory Technology: DRAM
Flash Memory: 8 MB

Cisco CISCO2610-RPS Controls/Indicators:
Status Indicators:

•Power
•RPS status
•Network activity
•Interface status

Cisco CISCO2610-RPS Software:
Operating System:
Cisco 2600 Series IOS IP
Cisco 2600 Series IOS IP

Cisco CISCO2610-RPS Power Description:
Redundant Power Supply: Yes

Cisco CISCO2610-RPS Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating

Cisco CISCO2610-RPS Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
