ATA188-I1

Manufacturer Part#: Cisco ATA188-I1

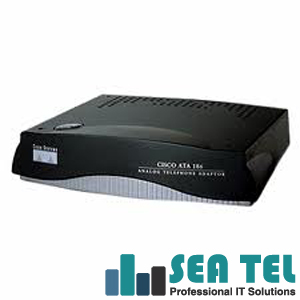

ATA188-I1 Cisco VoIP Gateway

ATA188-I1 - 2 x FXS , 1 x 10/100Base-TX LAN, 1 x 10/100Base-TX Uplink - VoIP Gateway

Cisco ATA 188 has two voice ports, each supporting independent telephone numbers, giving you two separate lines. In addition, the internal Ethernet switch allows for a direct connection to a 10/100BASE-T Ethernet network via an RJ-45 interface.

Cisco ATA188-I1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 180
Product Model: 188
Product Name: 188 2-Port Analog Telephone Adaptor
Product Type: VoIP Gateway

Cisco ATA188-I1 Technical Information:
Voice Codec: G.729
Voice Codec: G.723.1
Voice Codec: G.729b
Voice Codec: G.729a
Voice Codec: G.711a
Voice Codec: G.711u

Cisco ATA188-I1 I/O Expansions:
Expansion Slots: Not Applicable
Modules: Not Applicable

Cisco ATA188-I1 Interfaces/Ports:
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink
Interfaces/Ports: 2 x RJ-11 FXS
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN

Cisco ATA188-I1 Media & Performance:
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet

Cisco ATA188-I1 Management & Protocols:
•DHCP (RFC 2131)
•Web configuration via built-in Web server
•Class-of-service (CoS) bit-tagging (802.1P)
•Type-of-service (ToS) bit-tagging

ATA188-I1 Security Features:
•H.235 for H.323
•RC4 encryption for TFTP configuration files


Cisco ATA188-I1 Power Description:
Input Voltage: 5 V DC Device

Cisco ATA188-I1 Physical Characteristics:
Dimensions: 1.5 Height x 6.5 Width x 5.75 Depth
Weight: 15 oz
Shipping Weight: 0 lb
