SPIAD2431-1T1E1

Manufacturer Part#: Cisco SPIAD2431-1T1E1

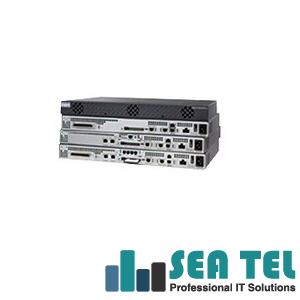

SPIAD2431-1T1E1 Cisco VoIP Gateway

SPIAD2431-1T1E1 Cisco IAD2431-1T1E1 is the next-generation integrated voice and data services platform for service providers, building on the industry-leading IAD2420. The Cisco IAD2431-1T1E1 offers a major leap forward in price performance and enhanced software functions, such as Cisco CallManager Express) and rich Media Gateway Control Protocol (MGCP) gateway services, to cost-effectively accelerate the migration from time-division multiplexing (TDM) to voice over IP (VoIP).

Cisco SPIAD2431-1T1E1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Model: 2431-1T1E1
Product Name: 2431-1T1E1 Integrated Access Device
Product Type: Integrated Access Device

Cisco SPIAD2431-1T1E1 Technical Information:
Voice Codec: G.711a
Voice Codec: G.711u
Voice Codec: G.726
Voice Codec: G.729

Cisco SPIAD2431-1T1E1 I/O Expansions:
Expansion Slots: (1 Total) VWIC
Expansion Slots: (1 Total) CompactFlash (CF) Card

Cisco SPIAD2431-1T1E1 Interfaces/Ports:
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 2 x T1/E1
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco SPIAD2431-1T1E1 Media & Performance:
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 2.05Mbps E1
Data Transfer Rate: 1.54Mbps T1

Cisco SPIAD2431-1T1E1 Management & Protocols:
Management:
SNAP auto-installation technology
Cisco CNS 1.5
CiscoView 2000
IE2100
SNAP auto-installation technology
Cisco CNS 1.5
CiscoView 2000
IE2100

Cisco SPIAD2431-1T1E1 Power Description:
Input Voltage: 100 V AC to 240 V AC
Power Supply: 35W

Cisco SPIAD2431-1T1E1 Physical Characteristics:
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.5 Width x 13.5 Depth
Weight: 11 lb
