AIR-LAP1242G-A-K9

Manufacturer Part#: Cisco AIR-LAP1242G-A-K9

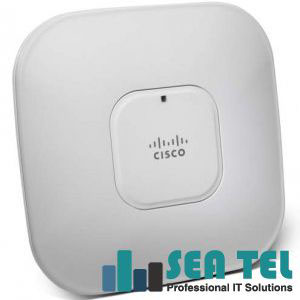

AIR-LAP1242G-A-K9 Cisco Wireless Access Point (AP)

AIR-LAP1242G-A-K9 - Wireless Access Point - 54Mbps

Cisco Aironet 1242 802.11g Non-modular Lightweight Access Point provide single-band 802.11g wireless connectivity for challenging RF environments such as factories, warehouses, and large retail establishments. Connectorized antennas, a rugged metal enclosure, and a broad operating temperature range offer extended range and coverage versatility.
The Cisco Aironet 1242 802.11g Non-modular Lightweight Access Point is a component of the Cisco Unified Wireless Network, a comprehensive solution that delivers an integrated, end-to-end wired and wireless network. Using the radio and network management features of the Cisco Unified Wireless Network for simplified deployment, the Cisco Aironet 1242 802.11g Non-modular Access Point extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless LAN (WLAN).

Cisco AIR-LAP1242G-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240G
Product Model: 1242
Product Name: Aironet 1242 802.11g Non-modular Lightweight Access Point
Product Type: Wireless Access Point

Cisco AIR-LAP1242G-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 950 ft
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 11 Channel Operating IEEE 802.11b/g America (FCC)
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b

Cisco AIR-LAP1242G-A-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-LAP1242G-A-K9 Management & Protocols:
Security Features:
Message Integrity Check (MIC)

Cisco AIR-LAP1242G-A-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-LAP1242G-A-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
