Product ID : Cisco Wireless AP
Product Description
Manufacturer Part#: Cisco AIR-AP1230B-A-K9
AIR-AP1230B-A-K9
Cisco Wireless Points (AP)

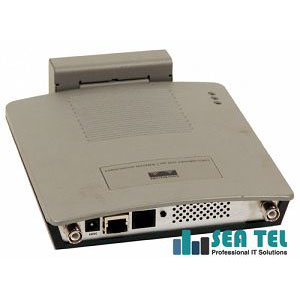

AIR-AP1230B-A-K9 - Cisco Aironet 1230B Access Point

The Cisco Aironet 1230B Access Point sets the enterprise standard for next-generation high performance, secure, manageable, and reliable wireless local-area networks (WLANs), while also providing investment protection because of its upgrade capability and compatibility with current standards. Taking advantage of Cisco IOS Software for ease-of-useand familiarity, the Cisco Aironet 1230B Access Point can be configured to meet customer-specific requirements at the time of purchase and then reconfigured and upgraded in the field as these requirements evolve. In addition, the Cisco Aironet 1230B Access Point creates a wireless infrastructure that provides customers with maximum mobility and flexibility, enabling constant connection to all network resources from virtually anywhere wireless access is deployed.

Cisco AIR-AP1230B-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1200
Product Model: 1230B
Product Name: Aironet 1230B Access Point
Product Type: Wireless Access Point

Cisco AIR-AP1230B-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 350 ft
Outdoor Antenna Range: 2000 ft
Channels: 3 Channel Non-overlapping
Channels: 11 Channel Operating IEEE 802.11b North America
Wireless Transmission Speed: 11 Mbps
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b
Modulation:
Direct sequence spread spectrum (DSSS)
CCK: 5.5 and 11 Mbps
DQPSK: 2 Mbps
DBPSK: 1 Mbps
Direct sequence spread spectrum (DSSS)
CCK: 5.5 and 11 Mbps
DQPSK: 2 Mbps
DBPSK: 1 Mbps

Cisco AIR-AP1230B-A-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1230B-A-K9 I/O Expansions:
Number of Expansion Slots: 1
Expansion Slots: (1 Total) Mini PCI

Cisco AIR-AP1230B-A-K9 Management & Protocols:
Management:
SNMP: MIB I and MIB II
DHCP
Telnet
HTTP
FTP
TFTP
QoS Support
SNMP: MIB I and MIB II
DHCP
Telnet
HTTP
FTP
TFTP
QoS Support

Security Features:
Message integrity check (MIC)
Remote Authentication Dial-In User Service (RADIUS)
Cisco Secure Access Control Server (ACS)
Message integrity check (MIC)
Remote Authentication Dial-In User Service (RADIUS)
Cisco Secure Access Control Server (ACS)


Cisco AIR-AP1230B-A-K9 Physical Characteristics:
Dimensions: 1.66 Height x 6.56 Width x 7.23 Depth
Weight: 25.6 oz
