Product Description

Manufacturer Part#: Cisco AIR-LAP1242AG-T-K9
AIR-LAP1242AG-T-K9 Cisco Wireless Access Point (AP)

AIR-LAP1242AG-T-K9 - Wireless Access Point - 108Mbps

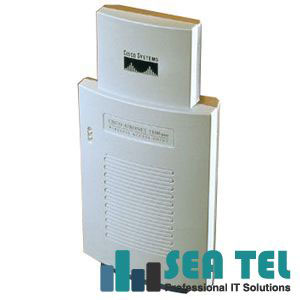

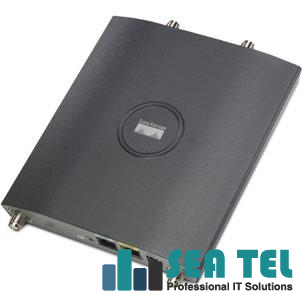

The Cisco Aironet 1242AG Wireless Access Point delivers the versatility, high capacity, security, and enterprise class features demanded by WLAN customers. This IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
Cisco AIR-LAP1242AG-T-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Model: 1242AG
Product Name: Aironet 1242AG Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point
Cisco AIR-LAP1242AG-T-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.25 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 4
Antenna Connector: RP-TNC Connector
Indoor Antenna Range: 445 ft
Outdoor Antenna Range: 950 ft
Channels: 7 Channel Operating IEEE 802.11a Taiwan
Channels: 3 Channel Non-overlapping IEEE 802.11b/g Taiwan
Channels: 11 Channel Operating IEEE 802.11b/g Taiwan
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Cisco AIR-LAP1242AG-T-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink
Cisco AIR-LAP1242AG-T-K9 Management & Protocols:

Web based management

Security Features:

•Cisco Unified Intrusion Detection System/Intrusion Prevention System (IDS/IPS)
•RC4 encryption algorithm
Cisco AIR-LAP1242AG-T-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1242AG-T-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Form Factor: Wall-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
