AIR-AP1131G-A-K9

Manufacturer Part#: Cisco AIR-AP1131G-A-K9
AIR-AP1131G-A-K9 Cisco Wireless Access Point (AP)

AIR-AP1131G-A-K9 Wireless Access Point - 54Mbps

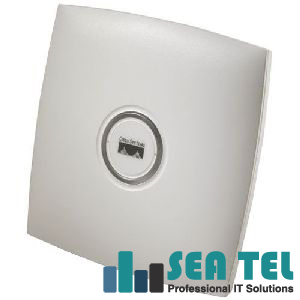

The Cisco Aironet 1131G Access Point is a single-band 802.11g access point that features business-class management, security, and scalability. This low-profile access point offers high-performance wireless connectivity in offices and similar environments.

Cisco AIR-AP1131G-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: 1131G
Product Name: Aironet 1131G Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-AP1131G-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
Number of Antennas: 2
Antenna Gain: 3 dBi
Antenna Type: Diversity Antenna
Indoor Antenna Range: 440 ft
Outdoor Antenna Range: 950 ft
Channels: 3 Channel Non-overlapping IEEE 802.11b/g America (FCC)
Channels: 11 Channel Operating IEEE 802.11b/g America (FCC)
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11g
Modulation:
Complementary Code Keying (CCK):

•BPSK (1 Mbps)
•QPSK (2 Mbps)
•CCK (5.5 and 11 Mbps)

Cisco AIR-AP1131G-A-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1131G-A-K9 Management & Protocols:
Security Features:
AES

Cisco AIR-AP1131G-A-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-AP1131G-A-K9 Physical Characteristics：
Form Factor: Ceiling-mountable
Form Factor: Desktop
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb
