Manufacturer Part#: Cisco AIR-AP1242AG-N-K9

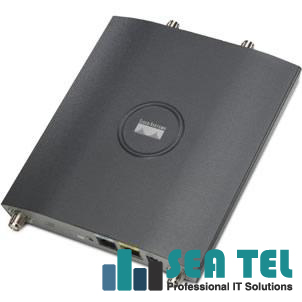

AIR-AP1242AG-N-K9 Cisco Wireless Access Point (AP)
AIR-AP1242AG-N-K9 Wireless Access Point - 108Mbps
The Aironet 1240AG IEEE 802.11a/g Non-modular Cisco IOS Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. The Cisco Aironet 1240AG Series provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE).
Cisco AIR-AP1242AG-N-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 4
Antenna Connector: RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 900 ft
Channels: 12 Channel IEEE 802.11a
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 12 Channel Non-overlapping IEEE 802.11a
Channels: 11 Channel IEEE 802.11b/g
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b
Cisco AIR-AP1242AG-N-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Cisco AIR-AP1242AG-N-K9 Management & Protocols:
Security Features:
High security without performance degradation
RC4 encryption algorithm
High security without performance degradation
RC4 encryption algorithm
Cisco AIR-AP1242AG-N-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply
Cisco AIR-AP1242AG-N-K9 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
