AIR-LAP1131AG-S-K9

Manufacturer Part#: Cisco AIR-LAP1131AG-S-K9

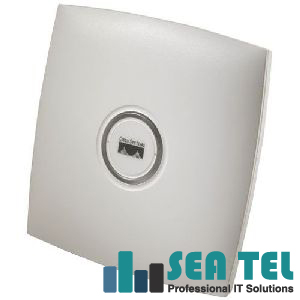

AIR-LAP1131AG-S-K9 Cisco Wireless Access Point (AP)

AIR-LAP1131AG-S-K9 - Wireless Access Point - 108Mbps - 1 x

Cisco Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. Two high-performing radios provide simultaneous support for 802.11a and 802.11g standards, delivering 108 Mbps data rates in the 5 and 2.4 GHz bands to distances surpassing that of previous-generation radios. For smooth migration, the Cisco Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point takes full advantage of the dual-band capabilities of today's WLAN clients, while providing full backward compatibility for legacy 802.11b clients.

Cisco AIR-LAP1131AG-S-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: 1131AG
Product Name: Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point
Product Type: Wireless Access Point

Cisco AIR-LAP1131AG-S-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 2
Antenna Gain: 4.5 dBi
Antenna Type: Omni-directional Antenna
Indoor Antenna Range: 400 ft
Outdoor Antenna Range: 950 ft
Channels: 8 Channel Operating IEEE 802.11a Singapore
Channels: 13 Channel Operating IEEE 802.11b/g Singapore
Channels: 12 Channel Operating IEEE 802.11a America (FCC)
Channels: 19 Channel Non-overlapping IEEE 802.11a America (FCC)
Channels: 3 Channel Non-overlapping IEEE 802.11b/g America (FCC)
Channels: 12 Channel Operating IEEE 802.11a Singapore
Channels: 11 Channel Operating IEEE 802.11b/g America (FCC)
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11a/g

Cisco AIR-LAP1131AG-S-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-LAP1131AG-S-K9 Management & Protocols:
Management:
BootP
Secure Shell (SSH) Protocol
Secure HTTP (HTTPS)
Trivial File Transfer Protocol (TFTP)
FTP
Telnet
Console port
Simple Network Management Protocol (SNMP) MIB I and MIB II
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE
BootP
Secure Shell (SSH) Protocol
Secure HTTP (HTTPS)
Trivial File Transfer Protocol (TFTP)
FTP
Telnet
Console port
Simple Network Management Protocol (SNMP) MIB I and MIB II
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE

Security Features:
Message integrity check (MIC)
MAC address authentication
RC4 encryption
Message integrity check (MIC)
MAC address authentication
RC4 encryption

Cisco AIR-LAP1131AG-S-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-LAP1131AG-S-K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Ceiling-mountable
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb
