AIR-CAP2602E-C-K9

Manufaturer Part#: Cisco AIR-CAP2602E-C-K9
AIR-CAP2602E-C-K9 Cisco wireless

AIR-CAP2602E-C-K9 - Cisco 2600 Series Access Points
802.11n CAP w/CleanAir: 3x4:3SS: Mod: Ext Ant: C Reg Domai

AIR-CAP2602E-C-K9 General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-CAP2602E-C-K9
Brand Name: Cisco
Product Line: Aironet
Product Series: 2600
Product Model: 2602E

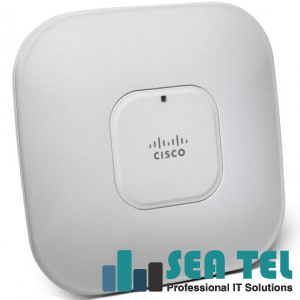

Product Name: Aironet 2602E Wireless Access Point
Product Type: Wireless Access Point

AIR-CAP2602E-C-K9 Technical Information
Wi-Fi Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.47 GHz
UNII Minimum Frequency: 5.18 GHz
UNII Maximum Frequency: 5.83 GHz
Wireless Transmission Speed: 450 Mbps
Wireless Security: •EAP-MSCHAPv2
•IEEE 802.1X
•IEEE 802.11i
•MSCHAPv2
•EAP-TTLS
•EAP-TLS
•WPA2
•PEAP
•WPA
•TKIP
•AES

AIR-CAP2602E-C-K9 Features: MIMO Technology
Interfaces/Ports
Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Network (RJ-11): No
PoE (RJ-45) Port: No
VGA: No
HDMI: No
Audio Line Out: No
Serial Port: No
USB: No
Powerline: No
Management Port: Yes
Power Description
Power Source: PoE, AC Adapter

AIR-CAP2602E-C-K9 Physical Characteristics
Form Factor: Ceiling Mountable
Height: 53.6 mm
Width: 220.7 mm
Depth: 220.7 mm
Weight (Approximate): 1.04 kg

AIR-CAP2602E-C-K9 Miscellaneous
Certifications & Standards: •FCC Bulletin OET-65C
•RSS-102
•UL 60950-1
•CAN/CSA-C22.2 No. 60950-1
•UL 2043
•IEC 60950-1
•EN 60950-1
•EN 50155

AIR-CAP2602E-C-K9 Radio Approvals:
•FCC Part 15.247, 15.407
•RSS-210 (Canada)
•EN 300.328, EN 301.893 (Europe)
•ARIB-STD 66 (Japan)
•ARIB-STD T71 (Japan)
•EMI and susceptibility (Class B)
•FCC Part 15.107 and 15.109
•ICES-003 (Canada)
•VCCI (Japan)
•EN 301.489-1 and -17 (Europe)
•EN 60601-1-2

AIR-CAP2602E-C-K9 IEEE Standards:
•802.11a
•802.11b
•802.11g
•802.11n
•802.11h
•802.11d
•802.3af
•802.3
•802.3u
•802.3ab
•802.1X
•802.11i

AIR-CAP2602E-C-K9 Warranty
Limited Warranty: Lifetime

Contact Sea Tel International Co., Limited for more information
