AIR-AP1010-I-K9

Manufacturer Part#: Cisco AIR-AP1010-I-K9

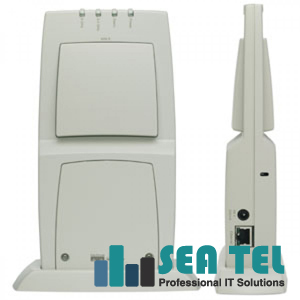

AIR-AP1010-I-K9 Cisco Wireless Access Point (AP)

AIR-AP1010-I-K9 Wireless Access Point - 54Mbps

Cisco Aironet 1010 802.11a/b/g Lightweight Access Point provide industry-leading RF capabilities with the widest breadth of deployment options for maximum wireless LAN performance, security, reliability, and ease of use. This makes the Aironet 1010 802.11a/b/g Lightweight Access Point ideally suited for any enterprise environment.
Cisco Aironet 1010 802.11a/b/g Lightweight Access Point is specifically designed for operation with Cisco Wireless LAN Controllers and the Wireless Control System management tool. They provide dual band support for both 802.11a, 802.11b and 802.11g, simultaneous air monitoring for dynamic, real time RF management.

Cisco AIR-AP1010-I-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1000
Product Model: 1010
Product Name: Aironet 1010 802.11a/b/g Lightweight Access Point
Product Type: Wireless Access Point

Cisco AIR-AP1010-I-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.4 GHz
ISM Maximum Frequency: 2.49 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 2
Antenna Type: Sector Antenna
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 2000 ft
Channels: Up to 3 Channel Non-overlapping IEEE 802.11b/g
Channels: Up to 12 Channel Non-overlapping IEEE 802.11a
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b

AIR-AP1010-I-K9 Modulation:
IEEE 802.11a:
•Orthogonal frequency division multiplexing (OFDM)

IEEE 802.11b:
•Direct sequence spread spectrum (DSSS)

IEEE 802.11g:
•DSSS
•OFDM


Cisco AIR-AP1010-I-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1010-I-K9 Management & Protocols:
Management:
Quality of service (QoS)

Security Features:
Intrusion prevention

Cisco AIR-AP1010-I-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Form Factor: Wall-mountable
Dimensions: 9.6 Height x 5.7 Width x 1.6 Depth
Weight: 1.3 lb
