Manufacturer Part#:PWR-C45-1000AC

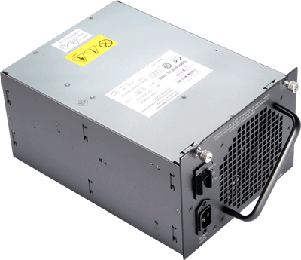

PWR-C45-1000AC CATALYST 4500 1000W AC POWER SUPPLY
PWR-C45-1000AC
Cisco PWR-C45-1000AC General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Catalyst 4500 Series 1000 Watt Power Supply
Cisco PWR-C45-1000AC Technical Information
Holdup Time: 20 ms
Cisco PWR-C45-1000AC Power Description
Input Voltage: 200V AC
Input Voltage Range: 100V AC to 200V AC
Output Voltage: 12V DC
Output Power: 1000 W
Cisco PWR-C45-1000AC Controls/Indicators
Cisco PWR-C45-1000AC Environmental Conditions
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Cisco PWR-C45-1000AC Physical Characteristics
Hot Swappable Power Supply: Yes
Shipping Dimensions: 9.5 Height x 12.5 Width x 17.5 Depth
Shipping Weight: 16 lb
Cisco PWR-C45-1000AC Miscellaneous
Additional Information:
Purpose: data
Integrated In-line Power: No (Data Only)
KVA rating (Maximum): 1.32 KVA
Output Power Redundant Mode (Data): 1000W + 40W
Output Power Combined Mode (Data): 1667 Watts
Heat Dissipation: 943 BTU/Hr
Hot Swappable
Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported
