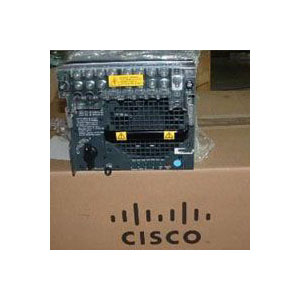

CISCO POWER SUPPLY PWR-4000-DC

Cisco PWR-4000-DC General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 4000 Watt DC Power Supply
Product Type: DC Power Supply

Cisco PWR-4000-DC Technical Information
Holdup Time: 8 ms
Cisco PWR-4000-DC Power Description
Input Voltage: -56V DC
Input Voltage: -72V DC
Input Voltage Range: -40V DC to -56V DC
Input Voltage Range: -55V DC to -72V DC
Output Voltage: 3.3V DC
Output Voltage: 42V DC
Output Voltage: 5V DC
Output Voltage: 12V DC
Output Power: 4000 W

Cisco PWR-4000-DC
•Green: When the input voltage is OK (-40.5 VDC or greater)
•Off: When the input voltage falls below -33 VDC or if the power supply shuts down

Fan Ok:
•Green: When the power supply fan operates properly
•Red: When the power supply fan failure is detected
•Red: When there is a problem with one or more of the DC-output voltages of the power supply

Cisco PWR-4000-DC Interfaces/Ports
Plug/Connector: NEMA L6-30P

Cisco PWR-4000-DC Physical Characteristics
Weight: 32 lb

Cisco PWR-4000-DC Miscellaneous
Additional Information:
KVA rating: 5.4 kVA maximum
System power dissipation: 5200 W (total input power)
DC-input current: 40 A per each DC input (three inputs)
DC input terminal block accepts 4 AWG copper conductors
Power supply output capacity:

4000 W with three inputs active
2700 W with two inputs active

KVA rating: 5.4 kVA maximum
System power dissipation: 5200 W (total input power)
DC-input current: 40 A per each DC input (three inputs)
DC input terminal block accepts 4 AWG copper conductors
Power supply output capacity:

4000 W with three inputs active
2700 W with two inputs active


Compatibility:
Catalyst 6506
Catalyst 6509
Catalyst 6509-NEB
Catalyst 6509-NEB-A
Catalyst 6513
Catalyst 6509
Catalyst 6509-NEB
Catalyst 6509-NEB-A
