WS-C4507R

Manufacturer Part#: Cisco WS-C4507R

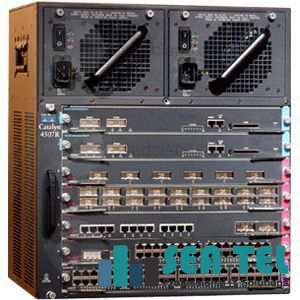

WS-C4507R Cisco Catalyst 4500 Series switch

WS-C4507R - Ethernet Catalyst Switch

The Cisco Catalyst 4507R offers nonblocking Layer 2-4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice, video, and data networks with high availability help enable business resiliency for enterprises, small and medium-sized businesses (SMBs), and Metro Ethernet customers deploying Internet-based business applications.

Cisco WS-C4507R General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4500
Product Name: Catalyst 4507R Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C4507R Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C4507R I/O Expansions:
Number of Expansion Slots: 7
Expansion Slots: (5 Total) Expansion Slot
Expansion Slots: (2 Total) Supervisor Engine
Modules: Not Included

Cisco WS-C4507R Management & Protocols:
Manageable: Yes
Management:
Network topology discovery and display services
VLAN provisioning and logical display representation
Traffic monitoring and performance assessment
End-station tracking with search utilities
CiscoView graphical device management
Network topology integrity checking
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent Version 1 (RFCs 1155-1157)
SNMP Version 2c
Cisco Workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet Repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote Monitoring (RMON) (RFC 1757)
Remote Monitoring II (RMON II) (RFC 2021)
Interface Table (RFC 1573)
Bridge MIB (RFC 1493)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access
Network topology discovery and display services
VLAN provisioning and logical display representation
Traffic monitoring and performance assessment
End-station tracking with search utilities
CiscoView graphical device management
Network topology integrity checking
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent Version 1 (RFCs 1155-1157)
SNMP Version 2c
Cisco Workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet Repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote Monitoring (RMON) (RFC 1757)
Remote Monitoring II (RMON II) (RFC 2021)
Interface Table (RFC 1573)
Bridge MIB (RFC 1493)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access

WS-C4507R  Protocols:
Protocols: SNMP
Protocols: TFTP
Protocols: BootP
Protocols: VTP
Protocols: CDP
Protocols: HSRP

Cisco WS-C4507R Software:
Operating System:
Cisco Catalyst IOS Software
Cisco Catalyst IOS Software

Cisco WS-C4507R Power Description:
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4507R Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.41 ft Operating

Cisco WS-C4507R Physical Characteristics:
Dimensions: 19.19 Height x 17.31 Width x 12.5 Depth
Shipping Dimensions: 19.2 Height x 23.1 Width x 27.9 Depth
Weight: 107lb
Shipping Weight: 63 lb

Cisco WS-C4507R Miscellaneous:
Additional Information: Item Included:
•Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)

WS-C4507R Supervisor Engines Supported:
•Supervisor Engines II-Plus
•Supervisor IV
•Slots 1 and 2 are reserved for Supervisor Engines only. Slots 3 and higher are reserved for line cards

Supervisor Engine Redundancy:
•Yes (Supervisor Engine IV only)

WS-C4507R Power supplies supported:
•1000-watt AC
•2800-watt ACV
•1300-watt ACV
•1400-watt DC

WS-C4507R System Requirements: Minimum Software Requirement:
•Cisco IOS Software Version 12.1(12c)EW or higher

Certifications & Standards: Safety:
•UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260

EMC:
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN 55022EN 55024
•EN 61000-6-1
•EN 50082-1
•EN 61000-3-2
•EN 61000-3-3
•ETS 300 386

Industry EMC, Safety and Environmental Standards:
•GR-63-Core NEBS Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3 (Pending)
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386

Telecom (E1):
•CTR 12/13
•CTR 4
•ACA TS016

Telecom (T1):
•FCC Part 68
•Canada CS-03
•JATE Green Book Ethernet:
•IEEE 802.3, 10BASE-T

Fast Ethernet:
•IEEE 802.3u, 100BASE-TX
•IEEE 802.3, 100BASE-FX

Gigabit Ethernet:
•IEEE 802.3z
•IEEE 802.3x
•IEEE 802.3ab

1000BASE-X (GBIC):
•1000BASE-SX
•1000BASE-LX/LH
•1000BASE-ZX

Virtual LAN (VLAN) trunking/tagging:
•IEEE 802.1Q

Spanning-Tree Protocol:
•IEEE 802.1D
•IEEE 802.1w
•IEEE 802.1s

Security:
•IEEE 802.1
