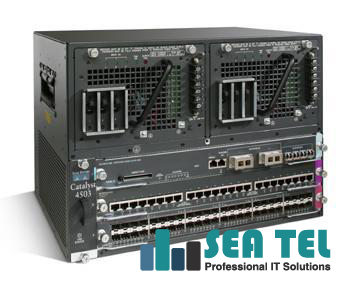

WS-C4503

Manufacturer Part#: Cisco WS-C4503
WS-C4503 Cisco Catalyst 4500 Series switch

WS-C4503 ATALYST 4500 CHASSIS (3-SLOT),FAN

The Cisco Catalyst 4500 Series offers non-blocking Layer2/3/4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice/video/data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications.

A key component of Cisco AVVID (Architecture for Voice, Video and Integrated Data), the Cisco Catalyst 4500 extends control to wiring closets, branch offices and layer 3 distribution points with intelligent network services. These services include sophisticated quality of service (QoS), predictable performance, advanced security, comprehensive management and integrated resiliency. The same intelligence and control enables business services aggregation and subscriber access in the metropolitan area for network operators and service providers.

Cisco WS-C4503 Miscellaneous：
Certifications & Standards: Safety:
•UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260

EMC:
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN 55022EN 55024
•EN 61000-6-1
•EN 50082-1
•EN 61000-3-2
•EN 61000-3-3
•ETS 300 386

Industry EMC, Safety and Environmental Standards:
•GR-63-Core NEBS Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3 (Pending)
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386

Telecom (E1):
•CTR 12/13
•CTR 4
•ACA TS016

Telecom (T1):
•FCC Part 68
•Canada CS-03
•JATE Green Book Ethernet:
•IEEE 802.3, 10BASE-T

Fast Ethernet:
•IEEE 802.3u, 100BASE-TX
•IEEE 802.3, 100BASE-FX

Gigabit Ethernet:
•IEEE 802.3z
•IEEE 802.3x
•IEEE 802.3ab
•1000BASE-X (GBIC)
•1000BASE-SX
•1000BASE-LX/LH
•1000BASE-ZX

Virtual LAN (VLAN) trunking/tagging:
•IEEE 802.1Q

Spanning-Tree Protocol:
•IEEE 802.1D
•IEEE 802.1w
•IEEE 802.1s

Security:
•IEEE 802.1x

Cisco WS-C4503 General Information：
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4500
Product Name: Catalyst 4503 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C4503 Interfaces/Ports：
Interfaces/Ports: LAN

Cisco WS-C4503 I/O Expansions：
Number of Expansion Slots: 3
Expansion Slots: (2 Total) Expansion Slot
Expansion Slots: (1 Total) Supervisor Engine

Cisco WS-C4503 Management & Protocols：
Manageable: Yes
Management:
SNMP
MIB
SNMP
MIB

Protocols: VTP
Protocols: TFTP
Protocols: BootP

Cisco WS-C4503 Power Description：
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4503 Environmental Conditions：
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.41 ft Operating

Cisco WS-C4503 Physical Characteristics：
Dimensions: 12.25 Height x 17.31 Width x 12.5 Depth
Shipping Dimensions: 19 Height x 20.5 Width x 23 Depth
Weight: 75lb

Cisco WS-C4503 Miscellaneous：
Additional Information: Item Included:
•Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)
-19-in. rack and cable guide hardware included

Supervisor engines supported:
•Supervisor II
•Supervisor III
•Supervisor IV

System Requirements: Minimum software requirement:
•Supervisor Engine II: Cisco CatOS Software Version 7.4(1) or higher
•Supervisor Engine III: Cisco IOS Software Version 12.1(12c)EW or higher
•Supervisor Engine IV: Cisco IOS Software Version 12.1(12c)EW or higher
