WS-C4506

Manufacturer Part#: Cisco WS-C4506

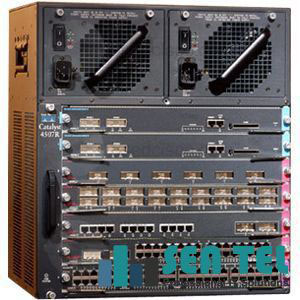

Cisco Catalyst 4000 Series switch WS-C4506
WS-C4506 Ethernet Catalyst 4500 Series

 The Cisco Catalyst 4506 offers nonblocking Layer 2-4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice, video, and data networks with high availability help enable business resiliency for enterprises, small and medium-sized businesses (SMBs), and Metro Ethernet customers deploying Internet-based business applications.

Cisco WS-C4506 I/O Expansions:
Number of Expansion Slots: 6
Expansion Slots: (5 Total) Expansion Slot
Expansion Slots: (1 Total) Supervisor Engine

Cisco WS-C4506 Management & Protocols:
Manageable: Yes

Cisco WS-C4506 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4500
Product Name: Catalyst 4506 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C4506 Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C4506 Management & Protocols:
Management:
SNMP
RMON
Remote Monitoring (RMON)
Remote Monitoring II (RMON II)
SNMP MIB II
Telnet
Ethernet Repeater MIB
Ethernet MIB
Cisco Workgroup Management Information Base (MIB)
Simple Network Management Protocol (SNMP) agent Version 1
SNMP Version 2c
SNMP
RMON
Remote Monitoring (RMON)
Remote Monitoring II (RMON II)
SNMP MIB II
Telnet
Ethernet Repeater MIB
Ethernet MIB
Cisco Workgroup Management Information Base (MIB)
Simple Network Management Protocol (SNMP) agent Version 1
SNMP Version 2c

Protocols: VTP
Protocols: CDP

Cisco WS-C4506 Controls/Indicators:
Status Indicators:
Power
Fail
Power
Fail

Cisco WS-C4506 Power Description:
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4506 Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: 196.84 ft to 13123.32 ft Operating

Cisco WS-C4506 Physical Characteristics:
Dimensions: 17.38 Height x 17.31 Width x 12.5 Depth
Shipping Dimensions: 24 Height x 24 Width x 26 Depth
Weight: 100lb

Cisco WS-C4506 Miscellaneous:
Additional Information: Item Included:
•Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)
•19-in. rack and cable guide hardware included
•Fan

Supervisor engines supported:
•Supervisor Engine II
•Supervisor Engine II-Plus
•Supervisor Engine III
•Supervisor Engine IV

•Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards
•No power supply

Power supplies supported:
•1000-watt AC
•2800-watt ACV
•1300-watt ACV
•1400-watt DC

System Requirements: Minimum software requirement:
•Cisco IOS Software Version 12.1(12c)EW or higher

Certifications & Standards: Safety:
•UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260

EMC:
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN 55022EN 55024
•EN 61000-6-1
•EN 50082-1
•EN 61000-3-2
•EN 61000-3-3
•ETS 300 386

Industry EMC, Safety and Environmental Standards:
•GR-63-Core NEBS Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3 (Pending)
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386

Telecom (E1):
•CTR 12/13
•CTR 4
•ACA TS016

Telecom (T1):
•FCC Part 68
•Canada CS-03
•JATE Green Book

Ethernet:
•IEEE 802.3, 10BASE-T

Fast Ethernet:
•IEEE 802.3u, 100BASE-TX
•IEEE 802.3, 100BASE-FX

Gigabit Ethernet:
•IEEE 802.3z
•IEEE 802.3x
•IEEE 802.3ab
•1000BASE-X (GBIC)
•1000BASE-SX
•1000BASE-LX/LH
•1000BASE-ZX

Virtual LAN (VLAN) trunking/tagging:
•IEEE 802.1Q

Spanning-Tree Protocol:
•IEEE 802.1D
•IEEE 802.1w
•IEEE 802.1s

Security:
•IEEE 802.1x
