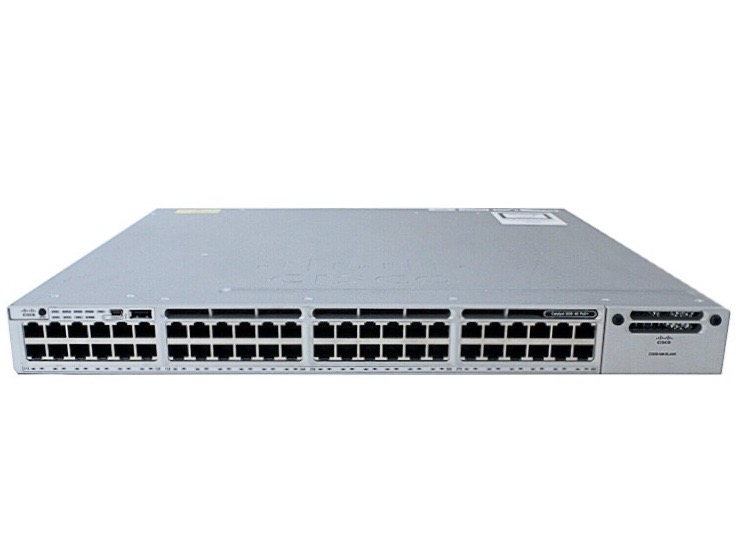

WS-C3850-48P-L

Model: WS-C3850-48P-L Catalyst 3850 Switch

Detail: Cisco Catalyst C3850-48P Switch Layer 3 - 48 * 10/100/1000 Ethernet POE+ ports - IP Base - managed- stackable

Replacement: C9300-48P-A



WS-C3850-48P-L Specification:

model info: WS-C3850-48P-L



enclosure type: Rack-mountable - 1U



WS-C3850-48P-L Ports: 48 x 10/100/1000 (POE+)



WS-C3850-48P-L Network management Interface



● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling

● Management console port: RJ-45-to-DB9 cable for PC connections



WS-C3850-48P-L Available PoE Power: 435W



WS-C3850-48P-L Switching Capacity: 176Gbps



WS-C3850-48P-L Maximum stacking number:

up to 9 switches with same IOS feature set in same series



Stack Bandwidth: 480Gbps



Forwarding Performance: 130.95Mpps



FNF (Flexible NetFlow)  entries: 48,000 flows



Maximum VLANs IDs: 1000



MAC Address Table Size: 32K



CPU: Multicore CPU



RAM: 4 G



Flash Memory: 2 G



Wireless: Number of AP per switch/stack: 100



Number of wireless clients per switch/stack: 2000



Total number of WLANs per switch: 64



Wireless bandwidth per switch: up to 40Gbps



Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040



Expansion / Connectivity: Console ports USB (Type-B), Ethernet (RJ-45)



WS-C3850-48P-L Expansion Slot(s):



1 network module slot and 1 power redundant slot



WS-C3850-48P-L Network Modules Selection



● C3850-NM-4-1G: 4 x 1G uplinks network module

● C3850-NM-4-10G: 4 x 10G uplinks network module

●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module



WS-C3850-48P-L Stacking cable



●STACK-T1-50CM StackWise stacking cable with a 0.5 m length

●STACK-T1-1M StackWise stacking cable with a 1.0 m length

●STACK-T1-3M StackWise stacking cable with a 3.0 m length



WS-C3850-48P-L Stack Power Cable (recommended)



●CAB-SPWR-30CM stack power cable with a 30CM length

●CAB-SPWR-150CM stack power cable with a 150CM length



WS-C3850-48P-L Power supply: PWR-C1-715WAC



Power Device: Power supply - redundant - plug-in module



Power Redundancy: optional



Voltage range (Auto):100V-240V



Power Consumption of standalone(in Watts): 135.96 (Max)



WS-C3850-48P-L Miscellaneous



Width: 17.5 Inches (44.5 cm)



Depth: 17.7 Inches (44.5 Cm)



Height: 1.75 Inches (4.45 cm)



Weight: 17.4 Pounds (7.9Kg)



Rack Mounting Kit: optional



MTBF in hours: 241,050



WS-C3850-48P-L Compliant Standards



● IEEE 802.1D Spanning Tree Protoco

● IEEE 802.1p CoS Prioritization

● IEEE 802.1Q VLAN

● IEEE 802.1s

● IEEE 802.1w

● IEEE 802.1X

● IEEE 802.1X-Rev

●IEEE 802.11

● IEEE 802.1ab (LLDP)

● IEEE 802.3ad

● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports



WS-C3850-48P-L



● IEEE 802.3 10BASE-T

● IEEE 802.3u 100BASE-TX

● IEEE 802.3ab 1000BASE-T

● IEEE 802.3z 1000BASE-X

● RMON I and II standards

● SNMP v1, v2c, and v3

●IEEE 802.3af and IEEE 802.3at



WS-C3850-48P-L System software / license



System software: IOS IP Base (Upgradable)



EnergyWise license: ENERGY-MGMT, ENERGY-MGT-100-K9



WS-C3850-48P-L Software license



●C3850-48-S-E: IP Base to IP Services RTU paper license

●L-C3850-48-S-E: IP Base to IP Services RTU electronic license



WS-C3850-48P-L Access Point Licenses



●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)

●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)

●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)



WS-C3850-48P-L Features



● RPS Support  ● IP service-level agreements (SLAs)  ● Advanced IP unicast routing protocols ● Jumbo Frames



● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S



●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary



● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority



Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure



Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3



and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4  ● VRF-lite  ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow



WS-C3850-48P-L Advanced Network security



● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)

● Bidirectional data support on a SPAN ● User authentication

● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security

● Multidomain authentication ● MAC address notification

● IGMP filtering ● Cisco security VLAN ACL

● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)

● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae

● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs

●  Bridge protocol data unit (BPDU) Guard

● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security



WS-C3850-48P-L Management

●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB

●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB

●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB

●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB

●CISCO-CIRCUIT-INTERFACE-MIB

●CISCO-ENTITY-VENDORTYPE-OID-MIB

●CISCO-CONTEXT-MAPPING-MIB

●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB

●CISCO-EIGRP-MIB

●CISCO-EMBEDDED-EVENT-MGR-MIB

●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB

●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB

●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB

●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB

●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB

●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB

●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB

●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB

●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB

●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB

●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB

●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB

●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB

●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB

●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB

●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB

●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB

●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB

●CISCO-SMART-INSTALL-MIB



WS-C3850-48P-L



●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB

●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB

●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB

●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB

●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB

●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB

●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB

●LLDP-MIB ●NOTIFICATION-LOG-MIB

●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB

●POWER-ETHERNET-MIB ●RMON2-MIB

●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB

●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB

●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB

●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB

●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB

●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB

●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB

●CISCO-LWAPP-CLIENT-ROAMING-MIB

●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB

●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB

●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB

●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB

●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB

●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB

●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB

●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB

●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB

●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB



WS-C3850-48P-L Technical Support and Services



● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services



WS-C3850-48P-L Environmental Ranges



With AC power supply Operating environment and altitude



WS-C3850-48P-L: Operating temperature up to 5000 ft (1500 m)



23ºF to 113ºF (-5ºC to +45ºC)
