Product Description

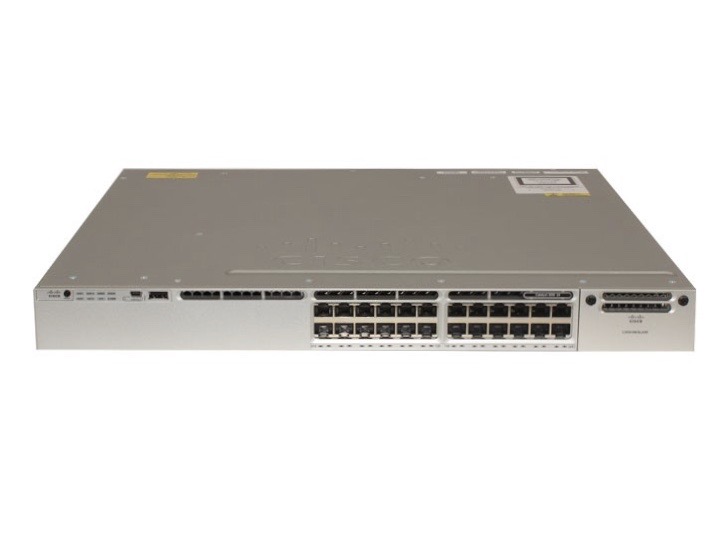

Model: WS-C3850-24T-S Catalyst 3850 Switch
Detail: Cisco Catalyst 3850 24 Port IP Base
Replacement: C9300-24T-A
Model info: WS-C3850-24T-S
enclosure type: Rack-mountable - 1U
Ports: 24 x 10/100/1000
WS-C3850-24T-S Network management Interface:
- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections
WS-C3850-24T-S Available PoE Power: None
- Switching Capacity: 92Gbps
- Maximum stacking number:
- up to 9 switches with same IOS feature set in same series
WS-C3850-24T-S Stack Bandwidth: 480Gbps
Forwarding Performance: 68.4Mpps
FNF entries: 24,000 flows
Maximum VLANs IDs: 4,000
MAC Address Table Size: 32K
CPU: Multicore CPU
RAM: 4 G
Flash Memory: 2 G
WS-C3850-24T-S Wireless:
Number of AP per switch/stack: 100
Number of wireless clients per switch/stack: 2000
Total number of WLANs per switch: 64
Wireless bandwidth per switch: up to 20Gbps
Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040
WS-C3850-24T-S Expansion / Connectivity
Console ports: USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s): 1 network module slot and 1 power redundant slot
WS-C3850-24T-S Network Modules Selection:
C3850-NM-4-1G: 4 x 1G uplinks network moduleC3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
WS-C3850-24T-S Stacking cable:
STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
WS-C3850-24T-S Stack Power Cable (recommended)
CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
WS-C3850-24T-S Power supply: PWR-C1-350WAC
Power Device: Power supply - redundant - plug-in module
Power Redundancy: optional
Voltage range (Auto): 100V-240V
Power Consumption of standalone(in Watts): 84.97 (max)
WS-C3850-24T-S Miscellaneous
Width: 17.5 Inches (44.5 cm)
Depth: 17.7 Inches (44.5 Cm)
Height: 1.75 Inches (4.45 cm)
Weight: 15.9 Pounds (7.2Kg)
Rack Mounting Kit: optional
MTBF in hours: 303,230
WS-C3850-24T-S Compliant Standards
IEEE 802.1D Spanning Tree Protoco
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1X-Rev
IEEE 802.11
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
WS-C3850-24T-S System software / license
System software: IOS IP Base (Upgradable)
EnergyWise license: ENERGY-MGMT, ENERGY-MGT-100-K9
Software license:
C3850-24-S-E: IP Base to IP Services RTU paper license
L-C3850-24-S-E: IP Base to IP Services RTU electronic license
WS-C3850-24T-S Access Point Licenses
L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
