Manufacturer's part#: Cisco HWIC-2FE

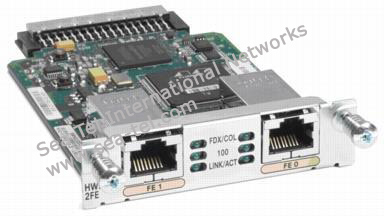

Cisco High-Speed - expansion module Cisco vpn card HWIC-2FE
1- and 2-Port Fast Ethernet High-Speed WIC for Cisco Integrated Services Routers.
HWIC-2FE Two 10/100 routed port HWIC Two 10/100 Routed Port
The Cisco HWIC-AP 802.11G and HWIC-AP 802.11A/B/G are Wireless LAN interface cards in the HWIC (High-Speed WAN Interface Card) form factor providing integrated access Point functionality in the Cisco 1800 (Modular), Cisco 2800, and Cisco 3800 Integrated Services Routers. Enterprise branch office and small to medium business customers can run concurrent services of Layer 3 routing, security, Layer 2 switching and now IEEE 802.11 wireless LAN functionality in a single platform. This combination offers ease of configuration, deployment, and management while delivering high performance, security and rich set of services.
The Cisco 802.11 WLAN Interface card HWIC-2FE provides Cisco 1800 Modular, 2800 and 3800 Integrated Services Routers the following:
Integrated Secure WLAN access Point Functionality for Cisco's Modular Integrated Services Routers
Single Band 802.11b/g or Dual Band 802.11a/b/g radios
Support for fixed or external dipole or dual mode antennas
Extensive WLAN Security Capabilities:
WEP, TKIP, Key Management
802.1X
LEAP, PEAP, EAP-TLS
Multiple VLAN support
AAA Radius/Accounting & network Admission control (NAC)
Part Code: HWIC-2FE
•Manufacturer: Cisco
•Device Type: Expansion module
•Form Factor: Plug-in module
•Interface (Bus) Type: HWIC
•Ports: 10/100 Ethernet x 2
HWIC-2FE Description
CISCO HWIC-2FE High-Speed WAN Interface Card 10/ 100Mbps 2 x RJ45
The 2-port (HWIC-2FE) card offers small-to-large-sized businesses and enterprise branch-office customers the option to add Layer 3 routed ports with many advanced features, including quality-of-service (QoS) and rate-limiting capabilities.
HWIC-2FE Product Features
•Legacy protocol transport
Serial and synchronous/asynchronous ports are ideally suited to transport legacy traffic across a TCP/IP network, facilitating network convergence and eliminating costly separate leased lines for this traffic.
•Dial access server
Asynchronous HWICs can connect to external dial modems to provide low-density dial access servers.
HWIC-2FE Product Details
Device Type Expansion module
Form Factor Plug-in module
Interface (Bus) Type HWIC
Ports 10/100 Ethernet x 2
HWIC-2FE Dimensions (WxDxH)
7.8 cm x 12 cm x 1.9 cm
Weight 73 g
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol 10Mb LAN, 100Mb LAN
Data Transfer Rate 100 Mbps
Network / Transport Protocol TCP/IP, L2TP, PPPoE
HWIC-2FE Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
HWIC-2FE Designed For:
Cisco 1841, 1841 2-pair, 1841 4-pair, 1841 T1, 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2801, 2801 V3PN, 2811, 2811 V3PN, 2821, 2821 V3PN, 2851, 2851 V3PN, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E
HWIC-2FE Product Specifications
Product Name HWIC Two 10/100 Routed Port
Product Type HWIC
Compatibility Cisco 3825 Integrated Services Routers
Cisco 3845 Integrated Services Routers
HWIC-2FE Data Transfer Rate 10 Mbps Ethernet
100 Mbps Fast Ethernet
HWIC-2FE Dimensions 0.8" Height x 3.1" Width x 4.7" Depth
Application/Usage Wide Area Network
Interfaces/Ports 2 x 10/100Base-TX
Interfaces/Ports Details 2 x RJ-45 10/100Base-TX Auto-sensing/Auto- negotiating/Auto MDI/MDI-X
Connectivity Media Twisted Pair
Form Factor Hot-pluggable
HWIC-2FE Management CiscoWorks
Simple Network Management Protocol (SNMP) support
Cisco NetFlow accounting
OLD-CISCO-CHASSIS- MIB
RMON
HWIC-2FE Interface Type 10/100Base-TX
Number of Ports/Channels 2
Additional Information Spare Product
Limited Warranty 90
HWIC-2FE General Specifications
Manufacturer Cisco
Manufacturer Part # HWIC-2FE
Cost Central Item # 11013049
Product Description Cisco High-Speed - Expansion module - HWIC - 10/100 Ethernet x 2 - for Cisco 1841, 1841 2-pair, 1921 4-pair, 1921 ADSL2+, 19XX, 28XX, 29XX, 38XX, 39XX
Device Type Expansion module
Form Factor Plug-in module
Interface (Bus) Type HWIC
Ports 10/100 Ethernet x 2
Approximate Dimensions (WxDxH) 3.1 in x 4.7 in x 0.7 in
Approximate Weight 2.6 oz
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol 10Mb LAN, 100Mb LAN
Data Transfer Rate 100 Mbps
Network / Transport Protocol TCP/IP, L2TP, PPPoE
HWIC-2FE Compliant Standards:
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
HWIC-2FE Designed For:
Cisco 1841, 1841 2-pair, 1841 4-pair, 1841 T1, 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2801, 2801 V3PN, 2811, 2811 V3PN, 2821, 2821 V3PN, 2851, 2851 V3PN, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E
