Product Description
Manufacturer Part#: Cisco DPA-7610

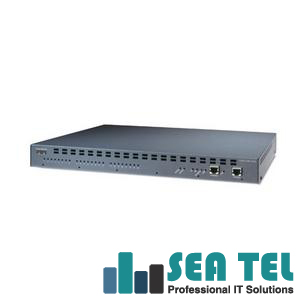

DPA-7610 Cisco VoIP Gateway
DPA-7610 -Voice Mail Gateway Dpa 7610 Voice Mail Gateway. 24 Ports, 2 Wire Nortel/Octel
Cisco DPA-7610 of voice mail gateways is a family of Voice over IP (VoIP) gateways that enables legacy voicemail equipment to connect to a Cisco IP telephony solution network. The Cisco DPA-7610 allows Octel voice mail systems, which currently use Digital Station Emulation to connect to an Avaya Definity PBX, or a Nortel Meridian 1 PBX, to instead connect to a Cisco CallManager system without any changes to the voice mail system. The Cisco DPA-7610 allows the voice mail system to be used solely by the Cisco CallManager or to be shared between the Cisco CallManager and the private branch exchange (PBX).
Cisco DPA-7610 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: DPA 7600
Product Model: DPA-7610
Product Name: DPA-7610 Voice Mail Gateway
Product Type: VoIP Gateway
Cisco DPA-7610 Technical Information:
Voice Codec: G.711
Voice Codec: G.729a
Cisco DPA-7610 Interfaces/Ports:
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Auto-sensing LAN
Interfaces/Ports: 1 x RJ-21 LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco DPA-7610 Media & Performance:
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Cisco DPA-7610 Management & Protocols:
Management:
Telnet
RMON
SNMP
Cisco CallManager
Cisco Discovery Protocol
Telnet
RMON
SNMP
Cisco CallManager
Cisco Discovery Protocol
Cisco DPA-7610 Power Description:
Input Voltage: 100 V AC to 240 V AC Power Supply
Cisco DPA-7610 Physical Characteristics:
Form Factor: 19 Rack-mountable
Dimensions: 1.75 Height x 17.25 Width x 15.5 Depth
Weight: 11.46 lb
DPA-7610 Cisco VoIP Gateway
DPA-7610 -Voice Mail Gateway Dpa 7610 Voice Mail Gateway. 24 Ports, 2 Wire Nortel/Octel
Cisco DPA-7610 of voice mail gateways is a family of Voice over IP (VoIP) gateways that enables legacy voicemail equipment to connect to a Cisco IP telephony solution network. The Cisco DPA-7610 allows Octel voice mail systems, which currently use Digital Station Emulation to connect to an Avaya Definity PBX, or a Nortel Meridian 1 PBX, to instead connect to a Cisco CallManager system without any changes to the voice mail system. The Cisco DPA-7610 allows the voice mail system to be used solely by the Cisco CallManager or to be shared between the Cisco CallManager and the private branch exchange (PBX).
Cisco DPA-7610 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: DPA 7600
Product Model: DPA-7610
Product Name: DPA-7610 Voice Mail Gateway
Product Type: VoIP Gateway
Cisco DPA-7610 Technical Information:
Voice Codec: G.711
Voice Codec: G.729a
Cisco DPA-7610 Interfaces/Ports:
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Auto-sensing LAN
Interfaces/Ports: 1 x RJ-21 LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco DPA-7610 Media & Performance:
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Cisco DPA-7610 Management & Protocols:
Management:
Telnet
RMON
SNMP
Cisco CallManager
Cisco Discovery Protocol
Telnet
RMON
SNMP
Cisco CallManager
Cisco Discovery Protocol
Cisco DPA-7610 Power Description:
Input Voltage: 100 V AC to 240 V AC Power Supply
Cisco DPA-7610 Physical Characteristics:
Form Factor: 19 Rack-mountable
Dimensions: 1.75 Height x 17.25 Width x 15.5 Depth
Weight: 11.46 lb
| Sea Tel International Co., Limited Cisco VoIP Gateway | |||
| VG200 | VG224 | SPIAD2431-1T1E1 | ATA188-I2-A |
| VG224 | IAD2431-16FXS | SPIAD2431-8FXS | CAG-VG200 |
| VG248 | IAD2431-1T1E1 | UC520-24U-4BRI-K9 | DPA-7610 |
| AS53-48-CH | IAD2431-8FXS | UC520-24U-8FXO-K9 | DPA-7630 |
| ATA186-I1-A | AS535XM-8E1-210-V | UC520-32U-4BRI-K9 | ATA188-I1-A |
| SPA2102-NA | AS535XM-VXML-192-V | UC520-48U-6BRI-K9 | IAD2423-8FXS |
| MEMVG200-16FS | AS535XM-VXML-48-V | UC520-48U-T/E/F-K9 | IAD2424-16FXS |
| UC520-8U-4FXOK9 | ATA186-I1-1P-CH1-A | UNITY-PIMG-ROLM | IAD2424-8FXS |
| IAD2421-16FXS | ATA186-I2-1P-CH1 | ATA186-I1 | ATA186-I2-A |
| VG248 | ATA186-I2-1P-CH1-A | ATA188-I1 | ATA186-I1-A |
| IAD2432-24FXS | SPIAD2431-16FXS | IAD2421-16FXS8FXO | VG248 |
