Product ID : CSS11503-AC
Product Description

Manufacturer Part#: Cisco CSS11503-AC
CSS11503-AC Content Services Switches (CSS)

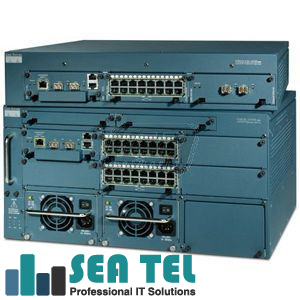

CSS11503-AC - Cisco 11503 Content Services Switch Chassis AC

Cisco CSS 11500, with the award-winning Cisco Web Network Services (WebNS) Software, is specifically designed to provide robust application delivery (Layer 4 to 7) services for Internet and intranet data centers. It introduces an intelligent, distributed architecture to help organizations meet the real-world scaling requirements of today's application infrastructure. It improves application and site availability and transaction integrity by introducing Adaptive Session Redundancy (ASR), an industry standard in stateful failover. It delivers the greatest flexibility of any content switch in its class for customizing combinations of ports, performance, and services. It scales secured application transaction performance through support of an integrated, high-capacity Secure Sockets Layer (SSL) module. Off-loading SSL onto the network improves the overall performance of the web and application server enabling better application performance. It provides an integrated high-capacity web application (Hypertext Transfer Protocol, HTTP) compression module. The Cisco CSS modular design protects investments by enabling upgrades of performance, ports, and services to meet your current and future application demands.

Cisco CSS11503-AC Miscellaneous:
Acoustic Noise: 70 dB maximum
Site activity/intensity: Medium
Port density (FE/GE): 32/6
Hardware scalability: Medium
System redundancy: No
Session redundancy: Yes
SSL acceleration: Internal
Load balancing: Servers, caches, firewalls
Maximum supported keepalives: 512
Maximum number of VLANs: 512
Maximum concurrent connections: 400,000

Network Utilities:
DNS Client
RADIUS Client
TACACS+ Client
HTTP Client
FTP Daemon
SNTP

Slot Configuration:
2 slots for I/O modules with one SCM

Storage - up to 2 per SCM:
512-MB hard disk or 256-MB Flash disk

Redundancy features:
Active-active Layer 5 Adaptive session redundancy
VIP redundancy

Shock:
Operating (half sine): 21 in./sec (0.53 m/sec)
Nonoperating (trapezoidal pulse): 20G, 52 in./sec (1.32 m/sec)
1G is a value of acceleration, where G equals 32.17 ft/sec** (9.81 m/sec**)

Vibration:
Operating: 0.35 Grms from 3 to 500 Hz (Grms is the root mean square value of acceleration)
Nonoperating: 1.0 Grms from 3 to 500 Hz
Acoustic Noise: 70 dB maximum
Site activity/intensity: Medium
Port density (FE/GE): 32/6
Hardware scalability: Medium
System redundancy: No
Session redundancy: Yes
SSL acceleration: Internal
Load balancing: Servers, caches, firewalls
Maximum supported keepalives: 512
Maximum number of VLANs: 512
Maximum concurrent connections: 400,000

Network Utilities:
DNS Client
RADIUS Client
TACACS+ Client
HTTP Client
FTP Daemon
SNTP

Slot Configuration:
2 slots for I/O modules with one SCM

Storage - up to 2 per SCM:
512-MB hard disk or 256-MB Flash disk

Redundancy features:
Active-active Layer 5 Adaptive session redundancy
VIP redundancy

Shock:
Operating (half sine): 21 in./sec (0.53 m/sec)
Nonoperating (trapezoidal pulse): 20G, 52 in./sec (1.32 m/sec)
1G is a value of acceleration, where G equals 32.17 ft/sec** (9.81 m/sec**)

Vibration:
Operating: 0.35 Grms from 3 to 500 Hz (Grms is the root mean square value of acceleration)
Nonoperating: 1.0 Grms from 3 to 500 Hz

System Requirements:
Requires WebNS 5.10 or later versions
Requires WebNS 5.10 or later versions

Certifications & Standards: Safety Certification:
•CSA-22.2 No. 950-UL1950
•ACA TS001
•EN60950/IEC60950
•AS/NZS 3260
•EN60825/IEC60825
•CSA-22.2 No. 950-UL1950
•Electromagnetic compliance (emissions)
•FCC CFR 47 Part 15 Class A
•FCC CFR 47 Part 15.109 Class B
•ICES-003 Class A
•CISPR 22 EN55022 Class B (to 1 GHz)
•CISPR 22 EN55022 Class A
•EN61000-3-2/IEC-1000-3-2 (power line harmonics)
•EN61000-3-2/IEC-1000-3-2 (power line harmonics)
•Electromagnetic compliance (emissions)
•VCCI V-3/01.4 Class B (to 1GHz)
•VCCI Class A
•ICES-003 Class B
•AS/NZS 3548 Class A
•AS/NZS3548 Class B

Immunity:
•EN300386 (EMC for network equipment)
•EN61000-4-8/IEC-1000-4-8 (Power frequency magnetic field immunity)
•EN61000-4-3/IEC-1000-4-2 (electrostatic discharge [ESD])
•EN61000-4-11/IEC-1000-4-11 (voltage dips and sags)
•EN61000-4-3/IEC-1000-4-3 (radiated immunity)
•ETS-300386
•EN61000-4/IEC-1000-4-4 (EFT)
•FCC Class A Compliance Notice (United States)
•EN61000-4-5/IEC-1000-4-5 (surge)
•ICES-003 Class A Compliance Notice (Canada)
•EN61000-4-6/IEC-1000-4-6 (low-frequency conducted immunity)
•VCCI Class A Compliance Notice (Japan)

Cisco CSS11503-AC Environmental Conditions:
Thermal Dissipation: 1468 BTU/h @ 430VA

Cisco CSS11503-AC Physical Characteristics:
Dimensions: 3.5 Height x 17.25 Width x 18.5 Depth
Shipping Dimensions: 10.25 Height x 23.25 Width x 25.25 Depth
Weight: 33.3lb
Shipping Weight: 42.85 lb

Cisco CSS11503-AC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: CSS 11000
Product Name: 11503 Content Switch
Product Type: Content Switch

Cisco CSS11503-AC Interfaces/Ports:
Number of Ports: 2
Gigabit Ethernet Port: Yes
Interfaces/Ports: 2 x Gigabit Ethernet LAN

Cisco CSS11503-AC Media & Performance:
Performance: 20Gbps Bandwidth Aggregate

Cisco CSS11503-AC I/O Expansions:
Number of Expansion Slots: 7
Expansion Slots: (2 Total) Switch Control Module
Expansion Slots: (2 Total) GBIC
Expansion Slots: (3 Total) Switch Control Module
Modules: 1 x Switch Fabric Module
Modules: 1 x Switch Control Module (SCM)

Cisco CSS11503-AC Management & Protocols:
Manageable: Yes
Management:
SNMP v1
SNMP v2c
SNMP v1
SNMP v2c

Protocols: TCP/IP
Protocols: SNMP
Protocols: HTTP

Cisco CSS11503-AC Memory:
Standard Memory: 288MB

Cisco CSS11503-AC Storage:
Storage: 1 x 512MB PCMCIA Hard Disk

Cisco CSS11503-AC Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Current: 5A
Frequency: 50 Hz to 60 Hz
Power Consumption: 430 VA

Cisco CSS11503-AC Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: Up to 95% Non-condensing Storage
Humidity: 10% to 90% Non-condensing Operating
Altitude: 0 ft to 10000 ft Operating
Altitude: 0 ft to 15000 ft Storage
