Manufacturer Part#: Cisco CP-7960G-CCME
CP-7960G-CCME Cisco IP phone
CP-7960G-CCME - 2 x RJ-45 10/100Base-TX - IP Phone

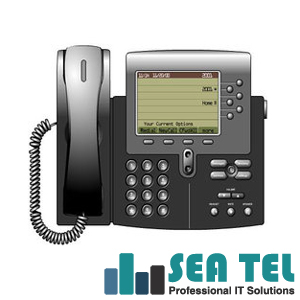

Cisco IP Phone 7960G, a key offering in the IP Phone portfolio, is a fully featured IP phone, perfect for managers and executives, providing six programmable line and feature buttons, and a high quality speakerphone. The Cisco IP Phone 7960G offers four dynamic soft keys that guide a user through call features and functions. Built-in headset port and integrated Ethernet Switch are standard with the Cisco IP Phone 7960G. Also includes audio controls for full duplex speakerphone, handset and headset.
Cisco CP-7960G-CCME General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 7900
Product Name: 7960G IP Phone
Product Type: IP Phone
Cisco CP-7960G-CCME Technical Information:
Phone Lines: 6 - Programmable
Phone Features: Date and Time
Phone Features: Volume Control
Phone Features: Digits Dialed
Phone Features: Calling Party Name
Phone Features: Calling Party Number
IP Phone Technology: VoIP
Voice Codec: G.711
Voice Codec: G.729a
Dialer Type: Dial Pad
Cisco CP-7960G-CCME Network & Communication:
Wireless Technology: Not Applicable
Frequency Band/Bandwidth: Not Applicable
Data Transfer Rate: Not Applicable
Transmit Power: Not Applicable
Quality of Service: 802.1Q VLAN Support
Cisco CP-7960G-CCME Interfaces/Ports:
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Cisco CP-7960G-CCME Management & Protocols:
Protocols: DHCP
Protocols: TFTP
Communication Protocols: SCCP
Communication Protocols: MGCP
Communication Protocols: SIP
Security Features:
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
Cisco CP-7960G-CCME Controls/Indicators:
Buttons & Keys: 1 x Microphone Mute Button
Buttons & Keys: 1 x Speaker On/Off Button
Buttons & Keys: 1 x Help Button
Buttons & Keys: 1 x Services Button
Buttons & Keys: 4 x Soft Key
Buttons & Keys: 1 x Directories Button
Buttons & Keys: 1 x Messages Button
Buttons & Keys: 1 x Settings Button
Cisco CP-7960G-CCME Power Description:
Input Voltage: 48 V DC
Power Source: In-line
Power Source: Adapter
Cisco CP-7960G-CCME Environmental Conditions:
Temperature: 14 degrees F (-10.0 degrees C) to 140 degrees F (60.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10 to 95% Non-condensing Relative Humidity
Cisco CP-7960G-CCME Physical Characteristics:
Dimensions: 8 Height x 10.5 Width x 6 Depth
Shipping Dimensions: 3.75 Height x 14.75 Width x 11.5 Depth
Weight: 3.5 lb
Shipping Weight: 3.88 lb
