CP-7960G
CP-7960G

CP-7960G

Product ID : Cisco IP phones
Product Description
Manufacturer Part#: Cisco CP-7960G

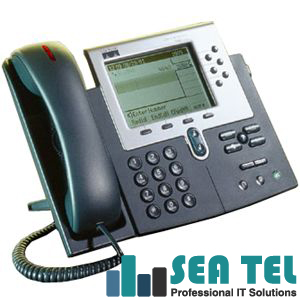

CP-7960G Cisco IP phones

CP-7960G - 2 x RJ-45 10/100Base-TX , 1 x Headset - 6Phoneline(s) - Programmable - IP Phone

Cisco IP phone family includes phones with large pixel-based displays to bring productivity enhancing applications to the phone, as well as customization options that can be modified as needs change, and provide inline power support over Ethernet. The Cisco IP Phone 7960G is multi-protocol enabled supporting Session Initiated Protocol (SIP), Media Gateway Control Protocol (MGCP), as well as Cisco's CallManager Skinny Client Control Protocol (SCCP).

Cisco CP-7960G Technical Information:
Phone Features: Calling Party Name
Phone Features: Calling Party Number
IP Phone Technology: VoIP
Voice Codec: G.711
Voice Codec: G.729a
Dialer Type: Dial Pad

Cisco CP-7960G Network & Communication:
Wireless Technology: Not Applicable
Frequency Band/Bandwidth: Not Applicable
Data Transfer Rate: Not Applicable
Transmit Power: Not Applicable
Quality of Service: 802.1Q VLAN Support

Cisco CP-7960G Display & Graphics:
Display Screen: LCD - Pixel-Based Display

Cisco CP-7960G Interfaces/Ports:
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN

Cisco CP-7960G Management & Protocols:
Protocols: DHCP
Protocols: TFTP
Communication Protocols: MGCP
Communication Protocols: SCCP
Communication Protocols: SIP
Security Features:
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used

Cisco CP-7960G Controls/Indicators:
Buttons & Keys: 1 x Microphone Mute Button
Buttons & Keys: 1 x Services Button
Buttons & Keys: 1 x Help Button
Buttons & Keys: 1 x Speaker On/Off Button
Buttons & Keys: 1 x Settings Button
Buttons & Keys: 1 x Messages Button
Buttons & Keys: 1 x Directories Button
Buttons & Keys: 4 x Soft Key

Cisco CP-7960G Power Description:
Input Voltage: 48 V DC
Power Source: In-line
Power Source: Adapter

Cisco CP-7960G Environmental Conditions:
Temperature: 14 degrees F (-10.0 degrees C) to 140 degrees F (60.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10 to 95% Non-condensing Relative Humidity

Cisco CP-7960G Physical Characteristics:
Dimensions: 8 Height x 10.5 Width x 6 Depth
Weight: 3.5 lb
