CISCO2821-DC

Manufacturer Part#: Cisco CISCO2821-DC

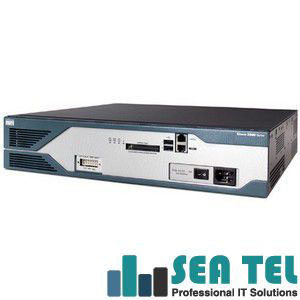

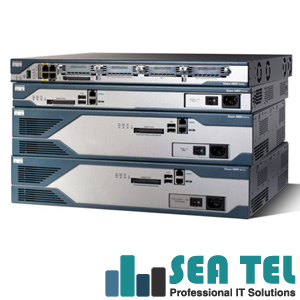

CISCO2821-DC Cisco 2800 Series Integrated Services Router

CISCO2821-DC - Integrated Services Router - 2 x 10/100/1000Base-T LAN, 2 x USB

Cisco 2821 with intelligently embed data, security, voice, and wireless services into a single, resilient system for fast, scalable delivery of mission-critical business applications. The unique integrated systems architecture of the 2821 Integrated Services Router delivers maximum business agility and investment protection

Cisco CISCO2821-DC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2821 Integrated Services Router
Product Type: Integrated Services Router

Cisco CISCO2821-DC Interfaces/Ports:
Number of Ports: 2
Gigabit Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100/1000Base-T 10/100/1000Base-T LAN
Interfaces/Ports: 2 x USB
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO2821-DC Media & Performance:
Connectivity Media: Twisted Pair 10/100/1000Base-T

Cisco CISCO2821-DC I/O Expansions:
Number of Expansion Slots: 11
Expansion Slots: (4 Total) HWIC
Expansion Slots: (1 Total) EVM
Expansion Slots: (2 Total) AIM
Expansion Slots: (3 Total) PVDM
Expansion Slots: (1 Total) NME

Cisco CISCO2821-DC Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
Simple Network Management Protocol (SNMP)
CiscoWorks support
Cisco AutoInstall
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
Simple Network Management Protocol (SNMP)
CiscoWorks support
Cisco AutoInstall

Protocols: SSH v2
Protocols: TCP/IP
Protocols: SNMP v3

Cisco CISCO2821-DC Memory:
Standard Memory: 256MB

Cisco CISCO2821-DC Controls/Indicators:
Status Indicators:
SYS PWR
AUX/PWR
SYS ACT
CF
SYS PWR
AUX/PWR
SYS ACT
CF

Cisco CISCO2821-DC Software:
Operating System:
Cisco 2800 IOS IP BASE
Cisco 2800 IOS IP BASE

Cisco CISCO2821-DC Power Description:
Input Voltage Range: 24V DC to 60V DC
Input Current: 5A @ 60V DC
Input Current: 12A @ 24V DC
Power Source: AC Adapter
Redundant Power Supply: Yes

Cisco CISCO2821-DC Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Operating
Thermal Dissipation: 1024 BTU/h

Cisco CISCO2821-DC Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.25 Width x 16.4 Depth
Weight: 25 lb
