CISCO2811-SRST/K9

Manufacturer Part#: Cisco CISCO2811-SRST/K9

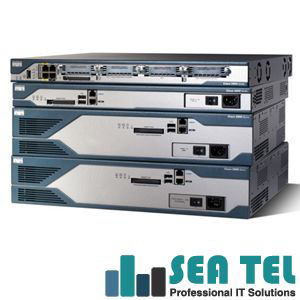

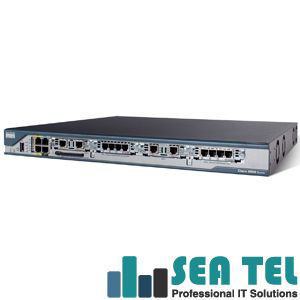

CISCO2811-SRST/K9 Cisco 2800 Series Integrated Services Router

CISCO2811-SRST/K9 - Cisco 2811 allows network managers to provide scalable analog and digital telephony without investing in a one-time solution, allowing enterprises greater control of their converged telephony needs. Using the voice and fax modules, the Cisco 2811 can be deployed for applications ranging from voice-over-IP (VoIP) and voice-over-Frame Relay (VoFR) transport to robust, centralized solutions using the Cisco Survivable Remote Site Telephony (SRST) solution or distributed call processing using Cisco Call Manager Express (CME).

Cisco CISCO2811-SRST/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2811 Router with Voice Bundle
Product Type: Integrated Services Router

Cisco CISCO2811-SRST/K9 I/O Expansions:
Number of Expansion Slots: 9
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (1 Total) NME
Expansion Slots: (2 Total) PVDM
Expansion Slots: (2 Total) AIM
Modules: 1 x PVDM2-16 Packet Voice/Fax DSP Module

Cisco CISCO2811-SRST/K9 Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)

Cisco CISCO2811-SRST/K9 Protocols:
Protocols: RTP
Protocols: TCP/IP
Protocols: SNMP
Protocols: SSH v1
Protocols: MGCP
Protocols: H.323
Protocols: VoATM
Protocols: VoFR
Protocols: ATM
Protocols: VoIP

Cisco CISCO2811-SRST/K9 Memory
Standard Memory: 256MB
Maximum Memory: 760MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2811-SRST/K9 Software
Operating System:
Cisco 2800 IOS SP SERVICES
Cisco 2800 IOS SP SERVICES

Cisco CISCO2811-SRST/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1A @ 230V AC
Input Current: 2A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2811-SRST/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Operating

Cisco CISCO2811-SRST/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.25 Width x 16.4 Depth
