CISCO2801-CCMEK9-KIT

Manufacturer Part#: Cisco CISCO2801-CCMEK9-KIT

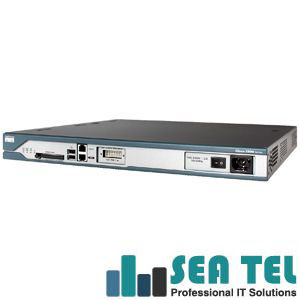

CISCO2801-CCMEK9-KIT Cisco 2800 Series Integrated Services Router

CISCO2801-CCMEK9-KIT - Integrated Services Router - 4 x HWIC, 2 x AIM, 2 x PVDM - 2 x 10/100Base-TX LAN

Cisco 2801 Integrated Service Router features the ability to deliver multiple high-quality simultaneous services at wire speed up to multiple T1/E1/xDSL connections. The 2801 Integrated Service Router offer embedded encryption acceleration and on the motherboard voice digital-signal-processor (DSP) slots; intrusion prevention system (IPS) and firewall functions; optional integrated call processing and voice mail support; high-density interfaces for a wide range of wired and wireless connectivity requirements; and sufficient performance and slot density for future network expansion requirements and advanced applications.

Cisco CISCO2801-CCMEK9-KIT General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Model: 2801
Product Name: 2801 Integrated Services Route
Product Type: Integrated Services Router

Cisco CISCO2801-CCMEK9-KIT Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x USB 1.1 USB
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO2801-CCMEK9-KIT I/O Expansions:
Number of Expansion Slots: 8
Expansion Slots: (2 Total) AIM
Expansion Slots: (4 Total) HWIC
Expansion Slots: (2 Total) PVDM

Cisco CISCO2801-CCMEK9-KIT Management & Protocols
Management:
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
CiscoWorks
Cisco IOS Embedded Event Manager (EEM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
CiscoWorks
Cisco IOS Embedded Event Manager (EEM)

Cisco CISCO2801-CCMEK9-KIT Memory:
Standard Memory: 128MB
Maximum Memory: 384MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2801-CCMEK9-KIT Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 264V AC
Redundant Power Supply: Yes

Cisco CISCO2801-CCMEK9-KIT Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Dimensions: 1.72 Height x 17.5 Width x 16.25 Depth
Weight: 13.7 lb
