CISCO2801-CCME/K9

Manufacturer Part#: Cisco CISCO2801-CCME/K9

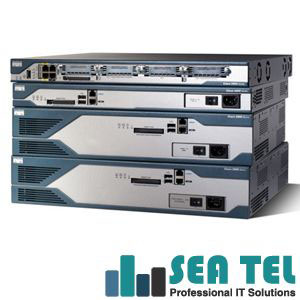

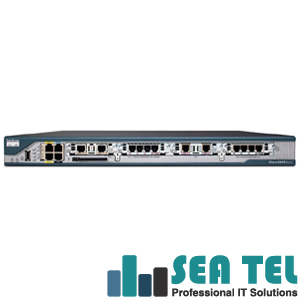

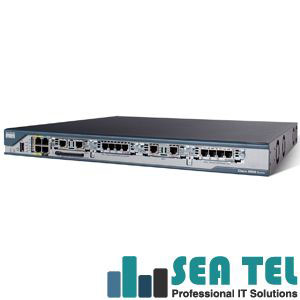

CISCO2801-CCME/K9 Cisco 2800 Series Integrated Services Router

CISCO2801-CCME/K9 - Integrated Services Router - 2 x 10/100Base-TX LAN, 1 x USB

Cisco 2801 allows network managers to provide scalable analog and digital telephony without investing in a one-time solution, allowing enterprises greater control of their converged telephony needs. Using the voice and fax modules, the Cisco 2801 can be deployed for applications ranging from voice-over-IP (VoIP) and voice-over-Frame Relay (VoFR) transport to robust, centralized solutions using the Cisco Survivable Remote Site Telephony (SRST) solution or distributed call processing using Cisco Call Manager Express (CME).

Cisco CISCO2801-CCME/K9 General Information:
Brand Name: Cisco
Product Series: 2800
Product Name: 2801 Router with Voice Bundle
Product Type: Integrated Services Router

Cisco CISCO2801-CCME/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 1 x USB

Cisco CISCO2801-CCME/K9 I/O Expansions:
Number of Expansion Slots: 8
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (2 Total) PVDM
Expansion Slots: (2 Total) AIM
Modules: 1 x PVDM2-8 Packet Voice/Fax DSP Module

Cisco CISCO2801-CCME/K9 Management & Protocols
Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)

Protocols: RTP
Protocols: TCP/IP
Protocols: SNMP
Protocols: SSH v1
Protocols: VoIP
Protocols: ATM
Protocols: MGCP
Protocols: H.323
Protocols: VoATM
Protocols: VoFR

Cisco CISCO2801-CCME/K9 Memory:
Standard Memory: 128MB
Maximum Memory: 384MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2801-CCME/K9 Software
Operating System:
Cisco 2801 IOS SP SERVICES
Cisco 2801 IOS SP SERVICES

Cisco CISCO2801-CCME/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1A @ 230V AC
Input Current: 2A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2801-CCME/K9 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 85% Non-condensing Operating

Cisco CISCO2801-CCME/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 1.72 Height x 17.5 Width x 16.5 Depth
